1920NL PRESSURE LIMITER VALVE FUEL RAIL| Ningbo Henshine Precision Mahcinery Co., Ltd

Ningbo Henshine Precision Machinery Co., Ltd

Detailed Photo:

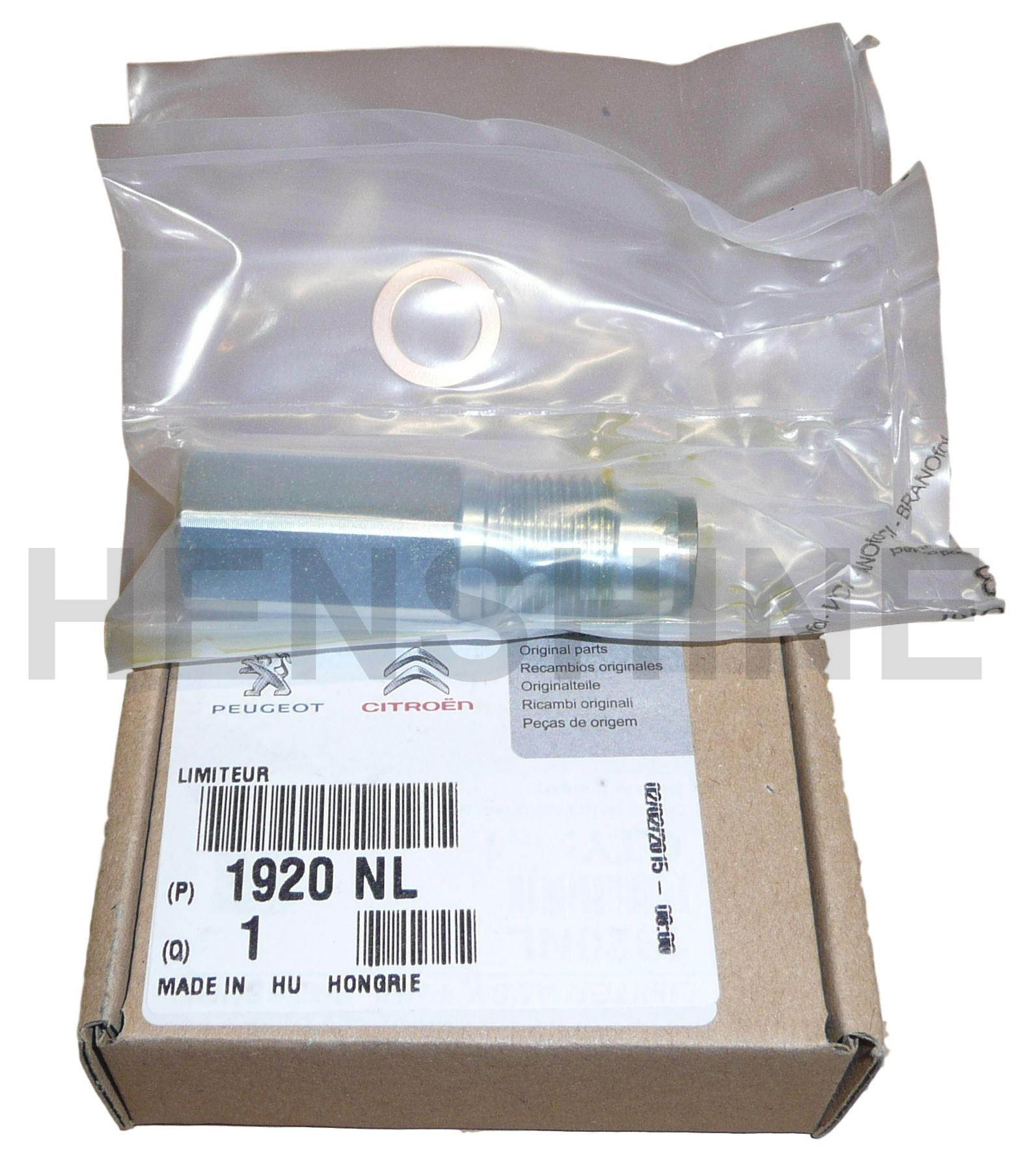

Genuine View of valve assy Pressure Limiter of CITROËN JUMPER 1920NL

(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

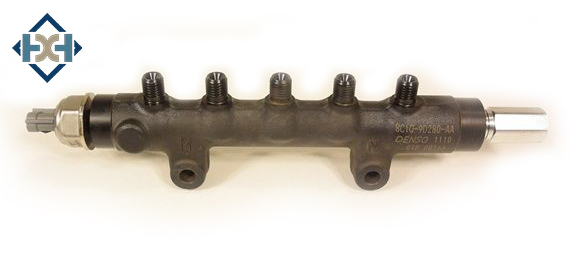

FIGURE-2, 1920NL Pressure Limiter Valve Fitting on Common Rail 1570P1 CITROEN Platforma
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

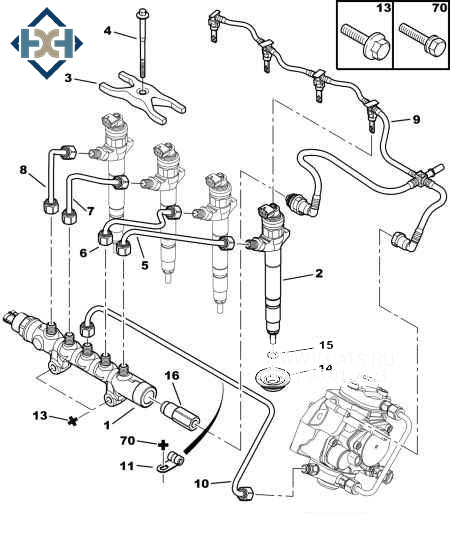

FIGURE 3 Pressure Relief Valve 1920NL with Common Rail 1570P1 engine 4HV(P22DTE)  2.2 HDi 100
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

               Condition:                                 Brand NEW/ Genuine Quality

               Manufacturer Part Number:   1920NL

               Other Numbers:                       Opel 55574390, 095420-0230

               Manufacturer:                          Made by HENSHINE

               Type:                                         Pressure Limiter Valve/ PLV

               Min Sample Order:                  15 pcs

               Production Capacity:               2,800 pcs/month

               Means of Transport:                Ocean, Land, Air, Express

               Payments:                                 Visa, Mastercard, T/T, WesternUnion, Online Transfer, Cash on pickup

PRESSURE LIMITER VALVE

1920NL Pressure Limiter Valve used for Common Rail 1570P1 1110 on CITROËN Platforma 2.2 HDi 100 diesel engine 4HV (P22DTE) 101[HP] 74[kW]

+Diesel Common Rail System/Fuel Injection System

 -Components of Fuel Common Rail/ High-pressure Common Rail

  -Prssure Limiter Valve/ Fuel Rail Pressure Control Valve; Pressure Releif Valve; Fuel Rail Pressure Regulator

What is a Pressure Limiter Valve? >> check here

The Pressure Limiter Valve (PLV) controls the fuel pressure in the common rail diesel engine. The use tolerance of PLV is very small and will soon be affected by contaminated fuel and / or fouling.

When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.

An ECU operated Inlet metering valve (IMV) or Rail Pressure Limiting Valve (PLV) located on the side of the high-pressure common rail is utilised for this purpose. which controls the output volume and pressure in the fuel rail.

Generally, the PLV is available as a replacement unit for a range of Fuel Common Rail.

The Common Rail only compresses the amount of fuel needed to maintain the rail pressure required.

This assists in reducing emissions by reducing engine operating load.

Reducing fuel flow during operation also results in lower fuel temperatures.

Common typical faults affecting PLV operation.

Excess wear, contaminated fuel, or an electrical malfunction with the Pressure Limiter Valve or Pressure Sensor can be created major driveability problems and possible fuel pressure conditions.
