55493549
Henshine
392
New, Genuine Quality
55493549
Chevrolet/ GMC 55493549
HXH
12 Months
Iron and plastic
7-15 days
Gay and Silver
NEW/ Original Quality
Chevrolet GMC Colorado/ TrailBlazer/ Canyon/ S10
Chevrolet/ GMC55593*80
Common
N/A
Netural, Henshine & OEM

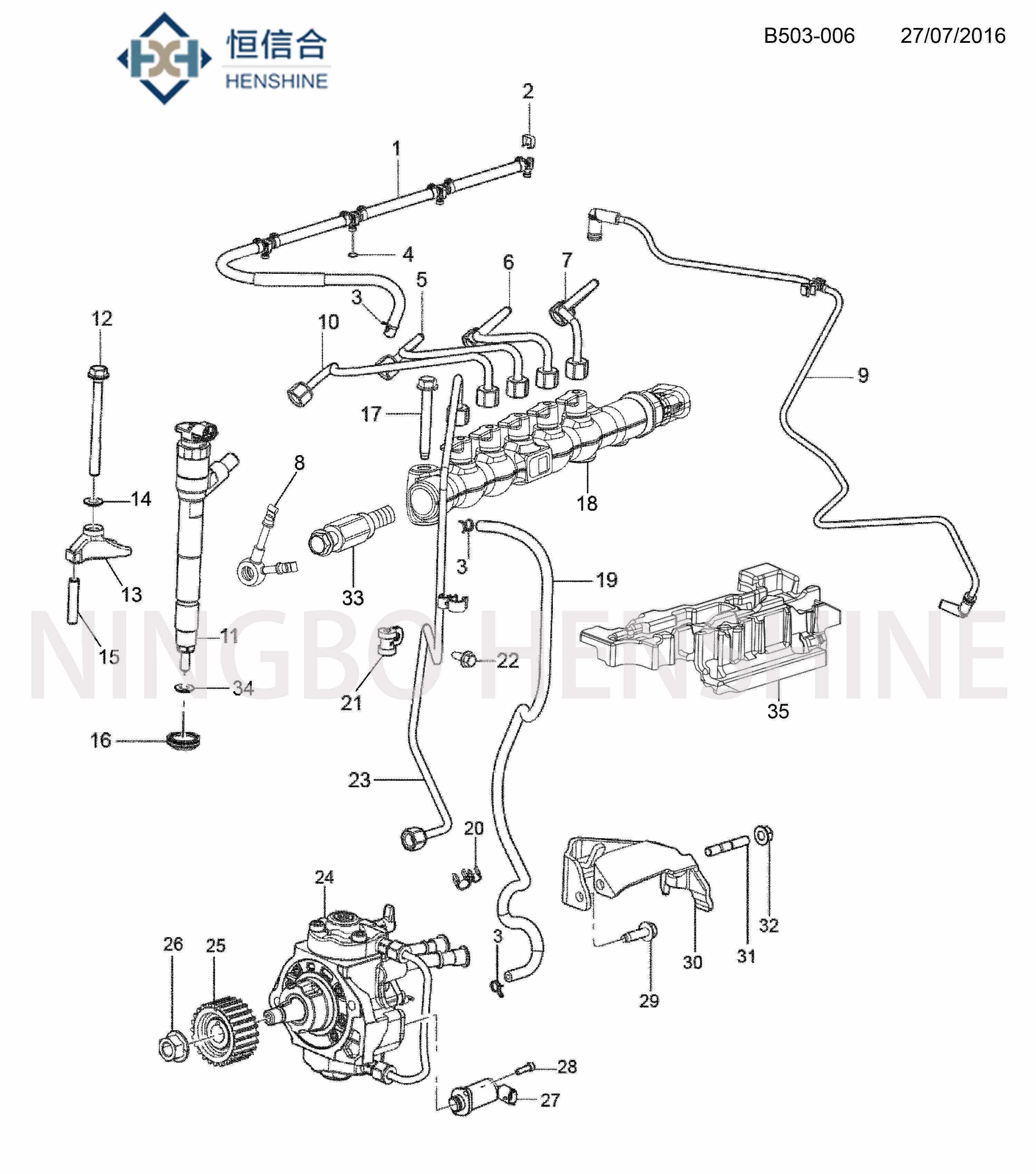

Figure 1 Cutaway of Chevrolet Injection Pump 294000-1685 including suction control valve 55493549
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| PNC | Part code | Title | Quantity |
| 0 | 12640382 | RAIL,DIR F/INJN FUEL(INCLS 8,18,33) | 1 |
| 0 | 12640382 | RAIL,DIR F/INJN FUEL(INCLS 8,18,33) | 1 |
| 1 | 55496741 | PIPE,FUEL RTN(INCLS 2,3,4) | 1 |
| 2 | 55578614 | CLAMP,F/INJN FUEL RTN HOSE(*KIT1) | 4 |
| 3 | 55591835 | CLAMP,FUEL RTN HOSE(PART OF 1,19) | 1 |
| 4 | 55591834 | RING,F/INJR NOZ TUBE SEAL RET(PART OF 1)(*KIT1) | 4 |
| 5 | 12642024 | PIPE,F/INJN FUEL FEED | 1 |
| 6 | 12642022 | PIPE,F/INJN FUEL FEED | 1 |
| 7 | 12642025 | PIPE,F/INJN FUEL FEED | 1 |
| 8 | 55593778 | CONNECTOR,FUEL FEED FRT HOSE(*KIT2)(3.330) | 1 |
| 9 | 12642299 | PIPE,EGR VLV VAC(VMM#11302113F) | 1 |
| 9 | 12642298 | PIPE,EGR VLV VAC(VMM#11302114F) | 1 |
| 10 | 12642026 | PIPE,F/INJN FUEL FEED | 1 |
| 11 | 12640381 | INJECTOR,FUEL(INCLS 34)(*KIT1) | 1 |
| 12 | 11518861 | BOLT,F/INJR BRKT(VMM# 41902120F(OUTBOARD)(M8X1.25X90.0MM)(M8X1.25X90.0MM)(O/B)(0.056) | 4 |
| 12 | 12625595 | BOLT,F/INJR BRKT(M8 X M90)(0.662) | 1 |
| 13 | 12643606 | CLAMP,DIR F/INJR HLDN(VMM#21362032F) | 4 |
| 14 | 12625635 | WASHER,F/INJR(VMM# 41810577F) | 4 |
| 15 | 12643607 | PIN,F/INJR LOC(VMM#21842069F) | 4 |
| 16 | SEAL,VLV RKR ARM CVR(SEE GROUP 0.000 "ENGINE ASM - DIESEL" FOR DETAILED ILLUSTRATED VIEW.) | ||
| 17 | 11516344 | BOLT,F/INJN FUEL RL(8.900) | 2 |
| 18 | RAIL,M/PORT F/INJN FUEL(*KIT2) | ||
| 19 | 55487025 | HOSE,F/INJN FUEL RTN(VMM# 11302123F)(INCLS 3,20) | 1 |
| 20 | 12647984 | CLIP,F/INJN FUEL RTN HOSE(PART OF 19) | 4 |
| 21 | 12625633 | CLIP,F/INJN FUEL FEED PIPE(VMM# 41612138F) | 1 |
| 22 | 12625642 | BOLT,FUEL FEED & RTN PIPE CLIP BRKT(2.383) | 1 |
| 23 | 12642023 | PIPE,FUEL FEED(VMM#21262021F) | 1 |
| 24 | 55493105 | PUMP,FUEL(INCLS 27,28) | 1 |
| 25 | 55595034 | PULLEY,F/INJN PUMP DRV | 1 |
| 26 | 12625631 | NUT,F/INJN PUMP DRVN SPKT(VMM# 41880514F) | 1 |
| 27 | 55493549 | VALVE KIT,F/INJN PUMP MTRG(INCLS 28 (PART OF 24) | 1 |
| 28 | BOLT,ELEK DSL CONT FUEL SOL VLV(PART OF 27) | ||
| 29 | 12625642 | BOLT,EGR PIPE(2.383) | 2 |
| 29 | 12632979 | BOLT,EGR PIPE(M8 X M25)(0.662) | 2 |
| 29 | 11588724 | BOLT,EGR PIPE(VMM# 41902107F(M8X30MM)(M8X30MM)(1.540) | 2 |
| 30 | 55597320 | PROTECTOR,FUEL FEED HOSE | 1 |
| 31 | 12625645 | STUD,F/INJN PUMP | 2 |
| 31 | 11519235 | STUD,F/INJN PUMP(M8X1.25X50)(3.275) | 2 |
| 32 | 12625630 | NUT,F/PMP(3.275) | 2 |
| 32 | 11546365 | NUT,F/PMP(VMM# 41880508F)(M8X1.25MM)(3.685) | 2 |
| 33 | 55593779 | VALVE KIT,FUEL PRESS LMTNG(*KIT2) | 1 |
| 34 | 55593777 | SEAL,COMBUSTION F/INJR(PART OF 11)(COPPER WASHER)(*KIT1)(3.300) | 4 |
| 35 | DEADENER,F/INJR | 1 |
55493549 Suction Control Valve for Fuel Supply System Injection Pump used on ISUZU Made by Ningbo Henshine Precision Machinery
The Suction Control Valve 55493549 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure
that the vehicle can run normally but also enable the engine to run in the most fuel -- efficient state to achieve the effect of saving fuel.
2003-7-03

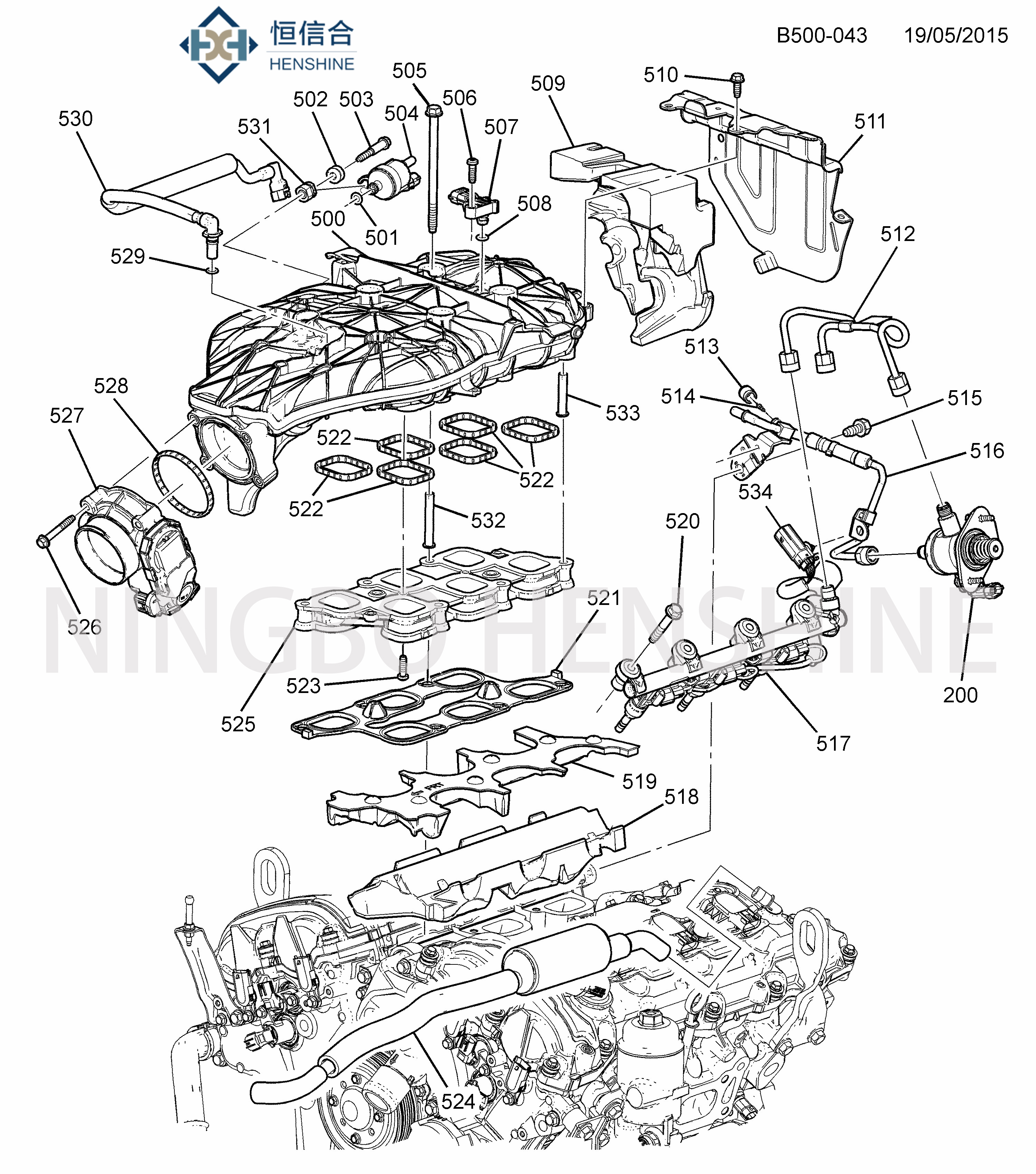

Figure 1 Exploded Diagram of Chevrolet Fuel Supply Pump 294000-1684 contains suction control valve 55493549
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
SUCTION CONTROL VALVE
55493549 Genuine Quality SCV Valve GM Chevrolet 2016-2019 2.8L LT4 Engine 55502494 294000-1685 Fuel Pump Pessure Regulator
+Diesel Common Rail System/Fuel Supply System
-Components of Fuel Injection Pump/ Supply Pump
-SCV Valve/Fuel Pressure Regulating Valve; Suction Control Valve
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:

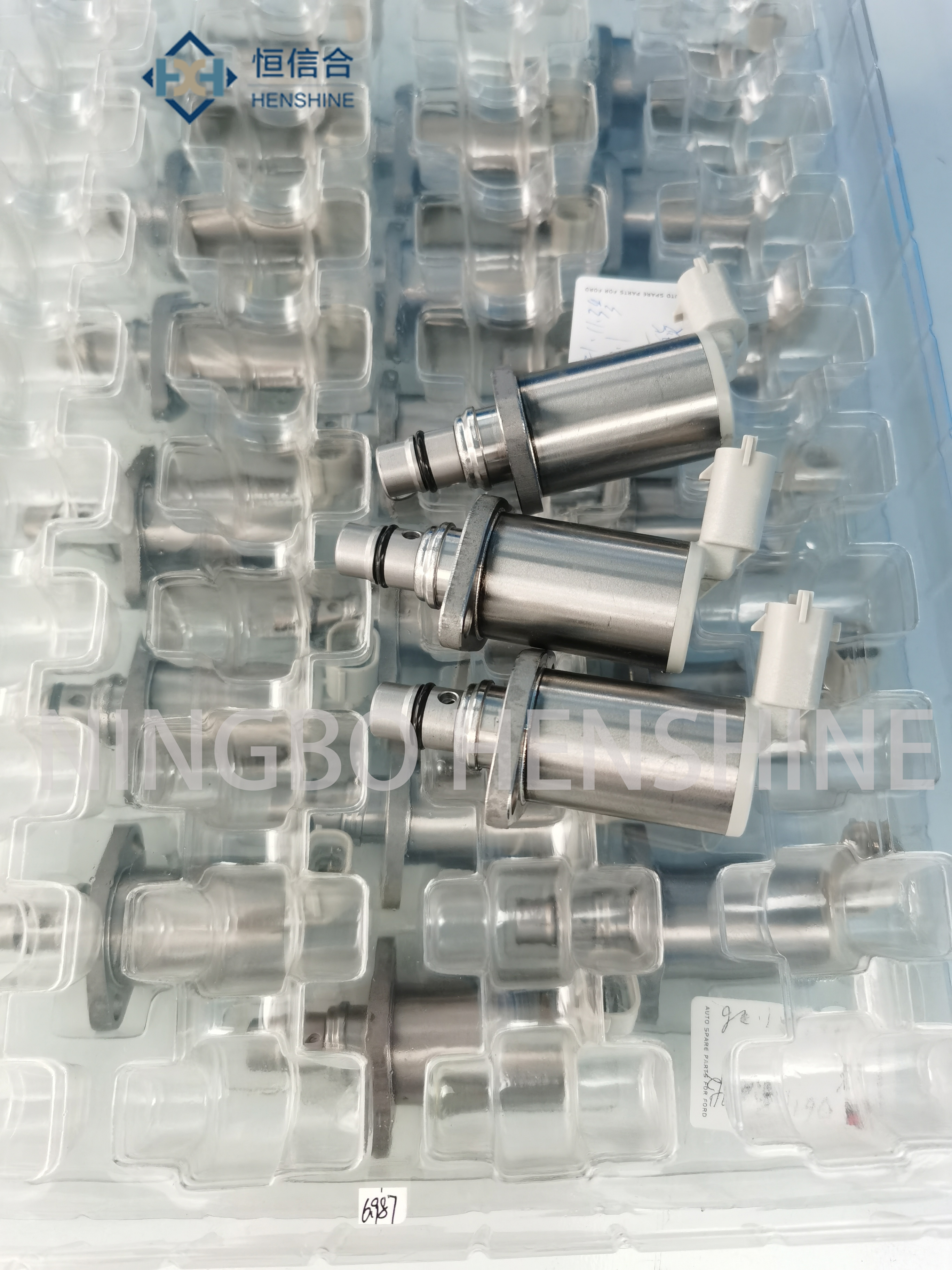

FIGURE 1 Side View of Chevrolet Colorado LT4 Suction Control Valve 55493549
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

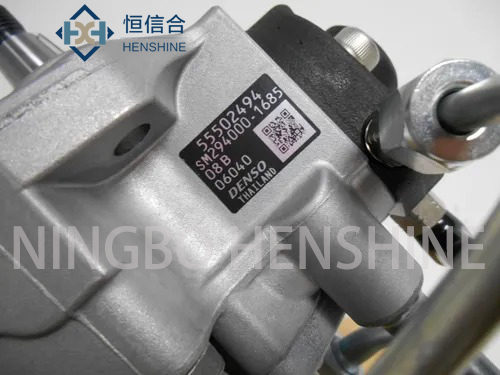

FIGURE 2 Chevrolet TrailBlazer SCV Valve 55493549 Fitting on 55493105
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

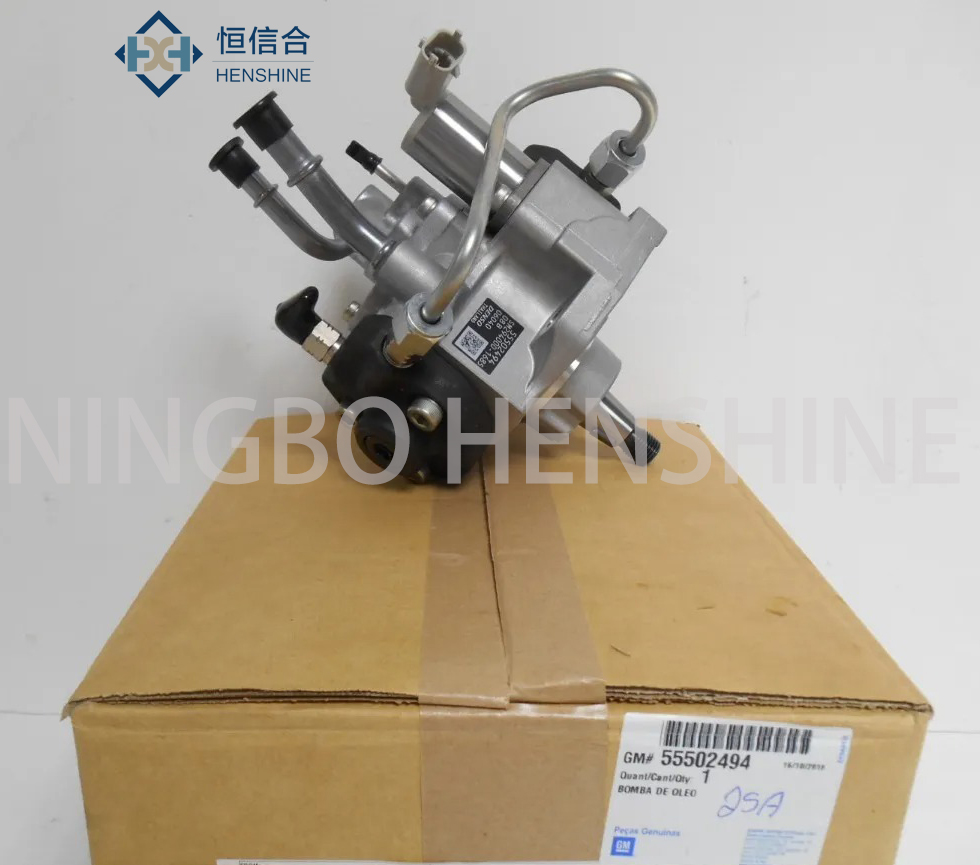

FIGURE 3 Chevrolet TrailBlazer SCV Valve 55493549 Fitting on 55502494
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Make: | Chevrolet/GMC |
| Model: | Colorado/ TrailBlazer/ Canyon/ S10 |
| Submodel: | / |
| Year: | 2016-2019 |
| Engine Type: | / |
| Engine Family: | LT4 |
| Engine Size: | / |
| Fuel Type: | Diesel |
| Regulator Usage: | Supply Pump |
| Replaces OEM Part Number (application): | Instead of Denso 55493549 |
Condition: Brand NEW
Manufacturer Part Number: 55493549
Other Numbers: Chevrolet 55***49
Brand: HENSHINE
Material: Plastic, Iron
Delivery time: 1-3days
Colour: Gray & Silver
Surface Finish: High Quality
Placement on Vehicle: Colorado/ TrailBlazer/ Canyon/ S10
Pump: 29400-01685, 29400-01684, 55493105 & etc.
Original Number: OE 55493549
Type: Suction Control Valve/ SCV
Packing: No 3/4 Natural Box & Henshine Box
Warranty: 1 year
Min Order: 10 pcs
Production Capacity: 4300 pcs per month
Means of Transport: Ocean, Land, Air, Express
Payments: Visa, WesternUnion, Mastercard, T/T, Online Transfer, Cash on pickup
A fuel pressure regulator, also named a suction control valve, or SCV valve, helps maintain the fuel
pressure in the Fuel Injection System. If the fuel injection system needs more fuel pressure, the fuel
pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like 55493549 Diesel Metering Valve.
What Is a SCV? >> check here
The suction control valve (SCV) controls the fuel pressure in the common rail diesel engine. The use tolerance of SCVs is very small and will soon be affected by contaminated fuel and / or fouling.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
SCV MPROP 55493549 FOR Chevrolet/ GMC
Interchangeable OE Numbers: 294200*****, 55593**80
Other Names for SCV:
Suction Control Valve
Chevrolet fuel pump pressure regulator
Injection Pressure Regulator
Fuel Pressure Regulator
Fuel Control Actuator
Fuel Pump Pressure Regulator
OVERHAUL KIT
Measuring Unit
scv control valve
Fuel Pump Valve
Fuel Measurement Solenoid Valve
VALVE ASSY SUCTION
Compatible Vehicles for 55493549:
| 2019 Chevrolet Colorado | LT, WT, Z71, ZR2 | 2.8L L4 - Diesel |
| 2019 GMC Canyon | All Terrain, Denali, SLE, SLT | 2.8L L4 - Diesel |
| 2018 Chevrolet Colorado | LT, WT, Z71, ZR2 | 2.8L L4 - Diesel |
| 2018 GMC Canyon | All Terrain, Denali, SLE, SLT | 2.8L L4 - Diesel |
| 2017 Chevrolet Colorado | LT, WT, Z71, ZR2 | 2.8L L4 - Diesel |
| 2017 GMC Canyon | Denali, SLE, SLT | 2.8L L4 - Diesel |
| 2016 Chevrolet Colorado | LT, WT, Z71 | 2.8L L4 - Diesel |
| 2016 GMC Canyon | SLE, SLT | 2.8L L4 - Diesel |
| CHEVROLET S10 LTZ 2.8L 2013-2016 | ||
| CHEVROLET TRAILBLAZER 2.8L 2014-2017 | ||
| GMC CANYON 2.8L 2016-2019 | ||
| HOLDEN COLORADO RG 2.8L 2016-2019 |
Figure 1 Cutaway of Chevrolet Injection Pump 294000-1685 including suction control valve 55493549
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| PNC | Part code | Title | Quantity |
| 0 | 12640382 | RAIL,DIR F/INJN FUEL(INCLS 8,18,33) | 1 |
| 0 | 12640382 | RAIL,DIR F/INJN FUEL(INCLS 8,18,33) | 1 |
| 1 | 55496741 | PIPE,FUEL RTN(INCLS 2,3,4) | 1 |
| 2 | 55578614 | CLAMP,F/INJN FUEL RTN HOSE(*KIT1) | 4 |
| 3 | 55591835 | CLAMP,FUEL RTN HOSE(PART OF 1,19) | 1 |
| 4 | 55591834 | RING,F/INJR NOZ TUBE SEAL RET(PART OF 1)(*KIT1) | 4 |
| 5 | 12642024 | PIPE,F/INJN FUEL FEED | 1 |
| 6 | 12642022 | PIPE,F/INJN FUEL FEED | 1 |
| 7 | 12642025 | PIPE,F/INJN FUEL FEED | 1 |
| 8 | 55593778 | CONNECTOR,FUEL FEED FRT HOSE(*KIT2)(3.330) | 1 |
| 9 | 12642299 | PIPE,EGR VLV VAC(VMM#11302113F) | 1 |
| 9 | 12642298 | PIPE,EGR VLV VAC(VMM#11302114F) | 1 |
| 10 | 12642026 | PIPE,F/INJN FUEL FEED | 1 |
| 11 | 12640381 | INJECTOR,FUEL(INCLS 34)(*KIT1) | 1 |
| 12 | 11518861 | BOLT,F/INJR BRKT(VMM# 41902120F(OUTBOARD)(M8X1.25X90.0MM)(M8X1.25X90.0MM)(O/B)(0.056) | 4 |
| 12 | 12625595 | BOLT,F/INJR BRKT(M8 X M90)(0.662) | 1 |
| 13 | 12643606 | CLAMP,DIR F/INJR HLDN(VMM#21362032F) | 4 |
| 14 | 12625635 | WASHER,F/INJR(VMM# 41810577F) | 4 |
| 15 | 12643607 | PIN,F/INJR LOC(VMM#21842069F) | 4 |
| 16 | SEAL,VLV RKR ARM CVR(SEE GROUP 0.000 "ENGINE ASM - DIESEL" FOR DETAILED ILLUSTRATED VIEW.) | ||
| 17 | 11516344 | BOLT,F/INJN FUEL RL(8.900) | 2 |
| 18 | RAIL,M/PORT F/INJN FUEL(*KIT2) | ||
| 19 | 55487025 | HOSE,F/INJN FUEL RTN(VMM# 11302123F)(INCLS 3,20) | 1 |
| 20 | 12647984 | CLIP,F/INJN FUEL RTN HOSE(PART OF 19) | 4 |
| 21 | 12625633 | CLIP,F/INJN FUEL FEED PIPE(VMM# 41612138F) | 1 |
| 22 | 12625642 | BOLT,FUEL FEED & RTN PIPE CLIP BRKT(2.383) | 1 |
| 23 | 12642023 | PIPE,FUEL FEED(VMM#21262021F) | 1 |
| 24 | 55493105 | PUMP,FUEL(INCLS 27,28) | 1 |
| 25 | 55595034 | PULLEY,F/INJN PUMP DRV | 1 |
| 26 | 12625631 | NUT,F/INJN PUMP DRVN SPKT(VMM# 41880514F) | 1 |
| 27 | 55493549 | VALVE KIT,F/INJN PUMP MTRG(INCLS 28 (PART OF 24) | 1 |
| 28 | BOLT,ELEK DSL CONT FUEL SOL VLV(PART OF 27) | ||
| 29 | 12625642 | BOLT,EGR PIPE(2.383) | 2 |
| 29 | 12632979 | BOLT,EGR PIPE(M8 X M25)(0.662) | 2 |
| 29 | 11588724 | BOLT,EGR PIPE(VMM# 41902107F(M8X30MM)(M8X30MM)(1.540) | 2 |
| 30 | 55597320 | PROTECTOR,FUEL FEED HOSE | 1 |
| 31 | 12625645 | STUD,F/INJN PUMP | 2 |
| 31 | 11519235 | STUD,F/INJN PUMP(M8X1.25X50)(3.275) | 2 |
| 32 | 12625630 | NUT,F/PMP(3.275) | 2 |
| 32 | 11546365 | NUT,F/PMP(VMM# 41880508F)(M8X1.25MM)(3.685) | 2 |
| 33 | 55593779 | VALVE KIT,FUEL PRESS LMTNG(*KIT2) | 1 |
| 34 | 55593777 | SEAL,COMBUSTION F/INJR(PART OF 11)(COPPER WASHER)(*KIT1)(3.300) | 4 |
| 35 | DEADENER,F/INJR | 1 |
55493549 Suction Control Valve for Fuel Supply System Injection Pump used on ISUZU Made by Ningbo Henshine Precision Machinery
The Suction Control Valve 55493549 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure
that the vehicle can run normally but also enable the engine to run in the most fuel -- efficient state to achieve the effect of saving fuel.
2003-7-03
Figure 1 Exploded Diagram of Chevrolet Fuel Supply Pump 294000-1684 contains suction control valve 55493549
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
SUCTION CONTROL VALVE
55493549 Genuine Quality SCV Valve GM Chevrolet 2016-2019 2.8L LT4 Engine 55502494 294000-1685 Fuel Pump Pessure Regulator
+Diesel Common Rail System/Fuel Supply System
-Components of Fuel Injection Pump/ Supply Pump
-SCV Valve/Fuel Pressure Regulating Valve; Suction Control Valve
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:
FIGURE 1 Side View of Chevrolet Colorado LT4 Suction Control Valve 55493549
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 2 Chevrolet TrailBlazer SCV Valve 55493549 Fitting on 55493105
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 3 Chevrolet TrailBlazer SCV Valve 55493549 Fitting on 55502494
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Make: | Chevrolet/GMC |
| Model: | Colorado/ TrailBlazer/ Canyon/ S10 |
| Submodel: | / |
| Year: | 2016-2019 |
| Engine Type: | / |
| Engine Family: | LT4 |
| Engine Size: | / |
| Fuel Type: | Diesel |
| Regulator Usage: | Supply Pump |
| Replaces OEM Part Number (application): | Instead of Denso 55493549 |
Condition: Brand NEW
Manufacturer Part Number: 55493549
Other Numbers: Chevrolet 55***49
Brand: HENSHINE
Material: Plastic, Iron
Delivery time: 1-3days
Colour: Gray & Silver
Surface Finish: High Quality
Placement on Vehicle: Colorado/ TrailBlazer/ Canyon/ S10
Pump: 29400-01685, 29400-01684, 55493105 & etc.
Original Number: OE 55493549
Type: Suction Control Valve/ SCV
Packing: No 3/4 Natural Box & Henshine Box
Warranty: 1 year
Min Order: 10 pcs
Production Capacity: 4300 pcs per month
Means of Transport: Ocean, Land, Air, Express
Payments: Visa, WesternUnion, Mastercard, T/T, Online Transfer, Cash on pickup
A fuel pressure regulator, also named a suction control valve, or SCV valve, helps maintain the fuel
pressure in the Fuel Injection System. If the fuel injection system needs more fuel pressure, the fuel
pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like 55493549 Diesel Metering Valve.
What Is a SCV? >> check here
The suction control valve (SCV) controls the fuel pressure in the common rail diesel engine. The use tolerance of SCVs is very small and will soon be affected by contaminated fuel and / or fouling.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.

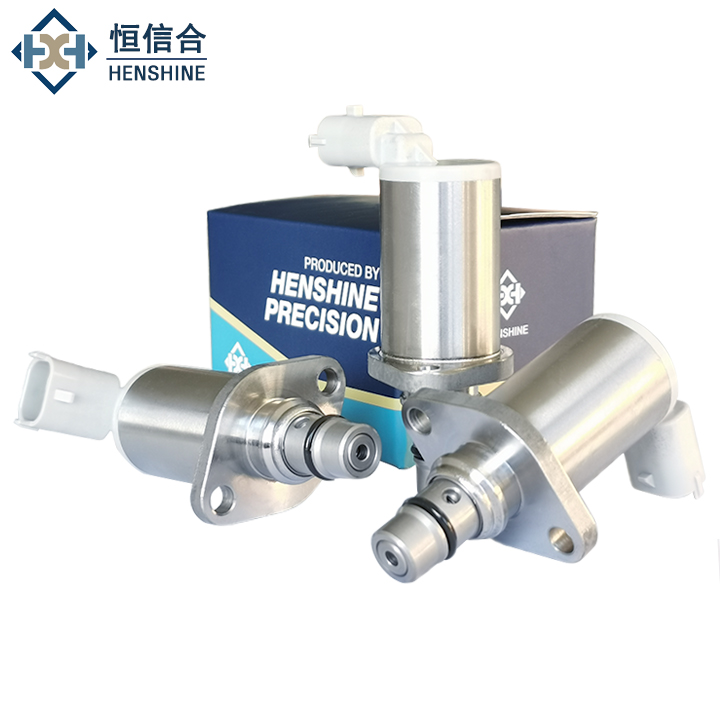

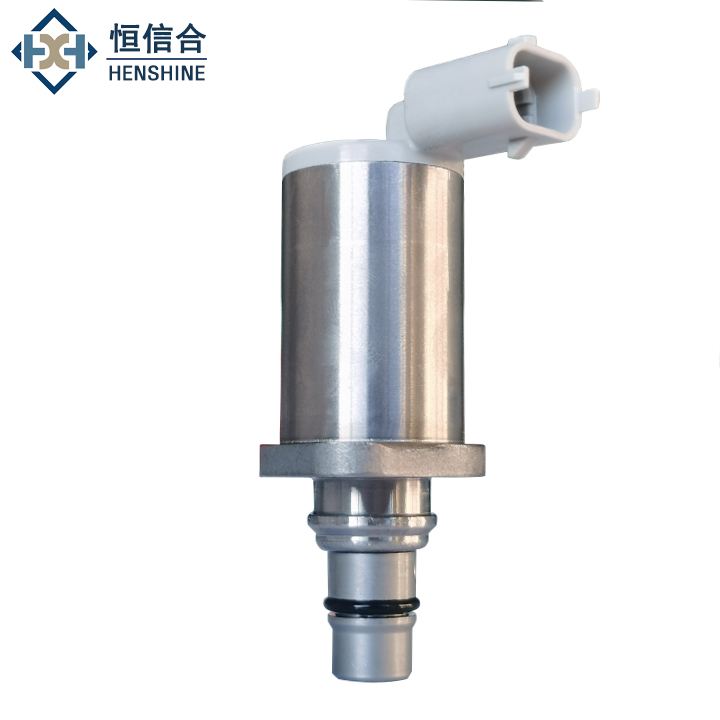

SCV MPROP 55493549 FOR Chevrolet/ GMC
Interchangeable OE Numbers: 294200*****, 55593**80
Other Names for SCV:
Suction Control Valve
Chevrolet fuel pump pressure regulator
Injection Pressure Regulator
Fuel Pressure Regulator
Fuel Control Actuator
Fuel Pump Pressure Regulator
OVERHAUL KIT
Measuring Unit
scv control valve
Fuel Pump Valve
Fuel Measurement Solenoid Valve
VALVE ASSY SUCTION
Compatible Vehicles for 55493549:
| 2019 Chevrolet Colorado | LT, WT, Z71, ZR2 | 2.8L L4 - Diesel |
| 2019 GMC Canyon | All Terrain, Denali, SLE, SLT | 2.8L L4 - Diesel |
| 2018 Chevrolet Colorado | LT, WT, Z71, ZR2 | 2.8L L4 - Diesel |
| 2018 GMC Canyon | All Terrain, Denali, SLE, SLT | 2.8L L4 - Diesel |
| 2017 Chevrolet Colorado | LT, WT, Z71, ZR2 | 2.8L L4 - Diesel |
| 2017 GMC Canyon | Denali, SLE, SLT | 2.8L L4 - Diesel |
| 2016 Chevrolet Colorado | LT, WT, Z71 | 2.8L L4 - Diesel |
| 2016 GMC Canyon | SLE, SLT | 2.8L L4 - Diesel |
| CHEVROLET S10 LTZ 2.8L 2013-2016 | ||
| CHEVROLET TRAILBLAZER 2.8L 2014-2017 | ||
| GMC CANYON 2.8L 2016-2019 | ||
| HOLDEN COLORADO RG 2.8L 2016-2019 |
