294200-2850
Henshine
285
Aftermarket/ Genuine Quality
04226-E01**
/
Henshine
12 Months after receipt of the products
Iron and plastic
5-12 days
Brown and Sillver
NEW
Toyota COASTER/Hino Dutro TKG-XZC655M//A860E/N04CTM/300
/
SCV Conventional
N/A
Customized/ Netural/ Henshine/ OEM & ODM
Figure 1 Cutaway of Hino Dutro 22100-E0541 Pump Pressure Regulator 294000-2700 contains Overhaul Kit 04226-E01*0
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Parts Code | Parts Number | Parts Name | Start - End | OEM / Aftermarket |
| 04226 | 04226-E0120 | |||
| Add inquiry | VALVE KIT, SUCTION CONTROL | 2017/01 - | N04C..XZB60,70 | |
| 22100 | 22100-E0551 | |||
| Add inquiry | PUMP ASSY, INJECTION OR SUPPLY | 2017/01 - | N04C..XZB60,70 | |
| 22100V | SN732-10493 | |||
| Add inquiry | RING, O(FOR INJECTION PUMP) | 2017/01 - | N04C..XZB60,70 | |
| 22214B | S2210-E0050 | |||
| JPY 8,998 | USD 81.80 | |||
| 23801M | SZ401-10019 | |||
| Add inquiry | BOLT, UNION | 2017/01 - | N04C..XZB60,70 | |
| Add inquiry | RAIL ASSY, COMMON | 2017/01 - | N04C..XZB60,70 | |
| 23811 | 23801-E0390 | |||
| Add inquiry | PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | 2017/01 - | N04C..XZB60,70 | |
| 23811G | 23811-E0K50 |

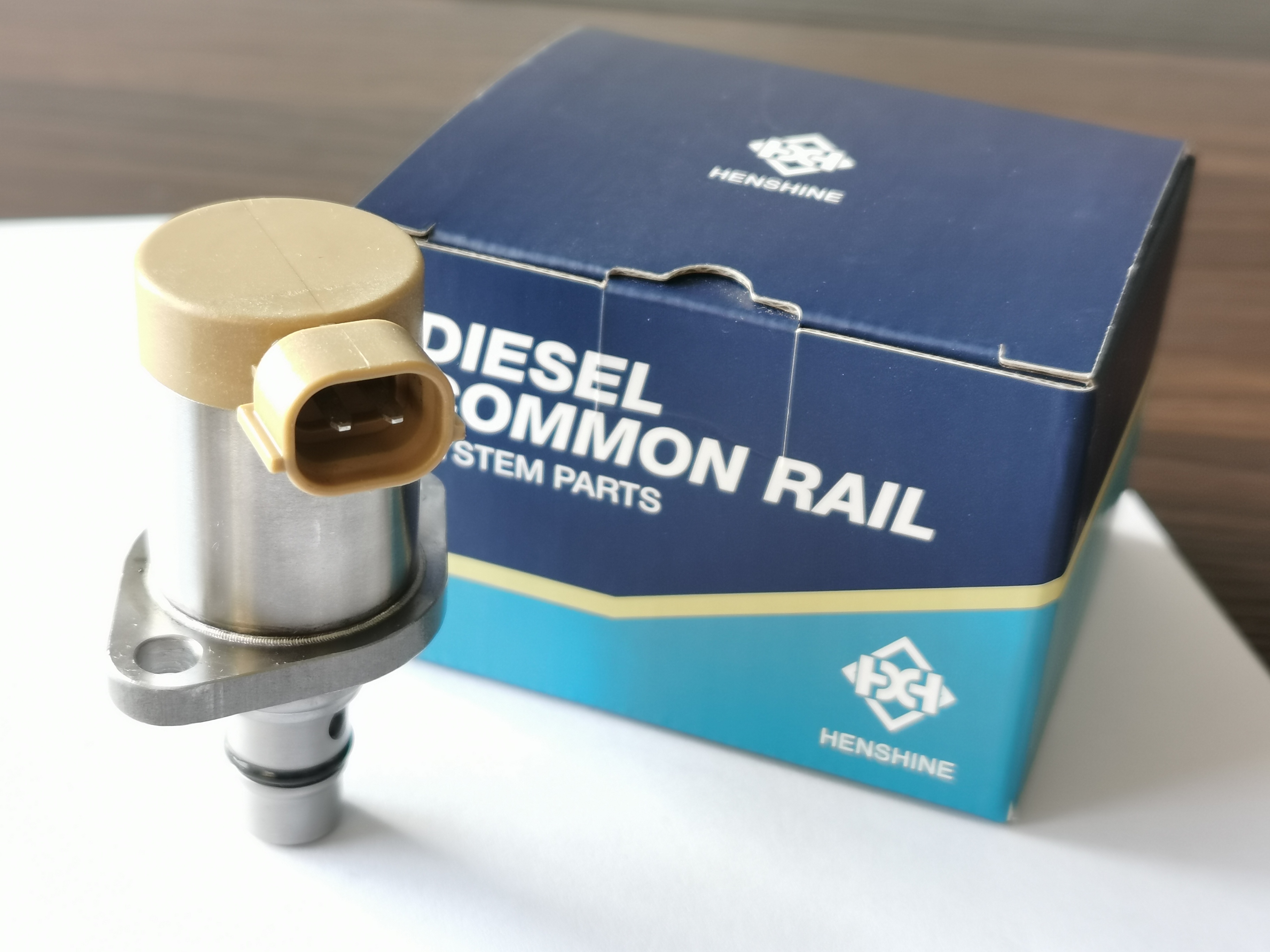

294200-2850 Suction Control Valve for Fuel Supply System Injection Pump used on ISUZU Made by Ningbo Henshine Precision Machinery
The Suction Control Valve 294200-2850 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure
that the vehicle can run normally but also enable the engine to run in the most fuel -- efficient state to achieve the effect of saving fuel.
2022-1-03
N04C-T Fuel Supply System 22100-E0550 294050-1453
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
SUCTION CONTROL VALVE
SCV 294200-2850 Suction Control Valve used on Hino/Toyota Engine N04C-T 4000CC Diesel| Ningbo Henshine Precision Machinery
+Diesel Common Rail System/Fuel Supply System
-Components of Fuel Injection Pump/ Supply Pump
-SCV Valve/Fuel Pressure Regulating Valve; Suction Control Valve
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:

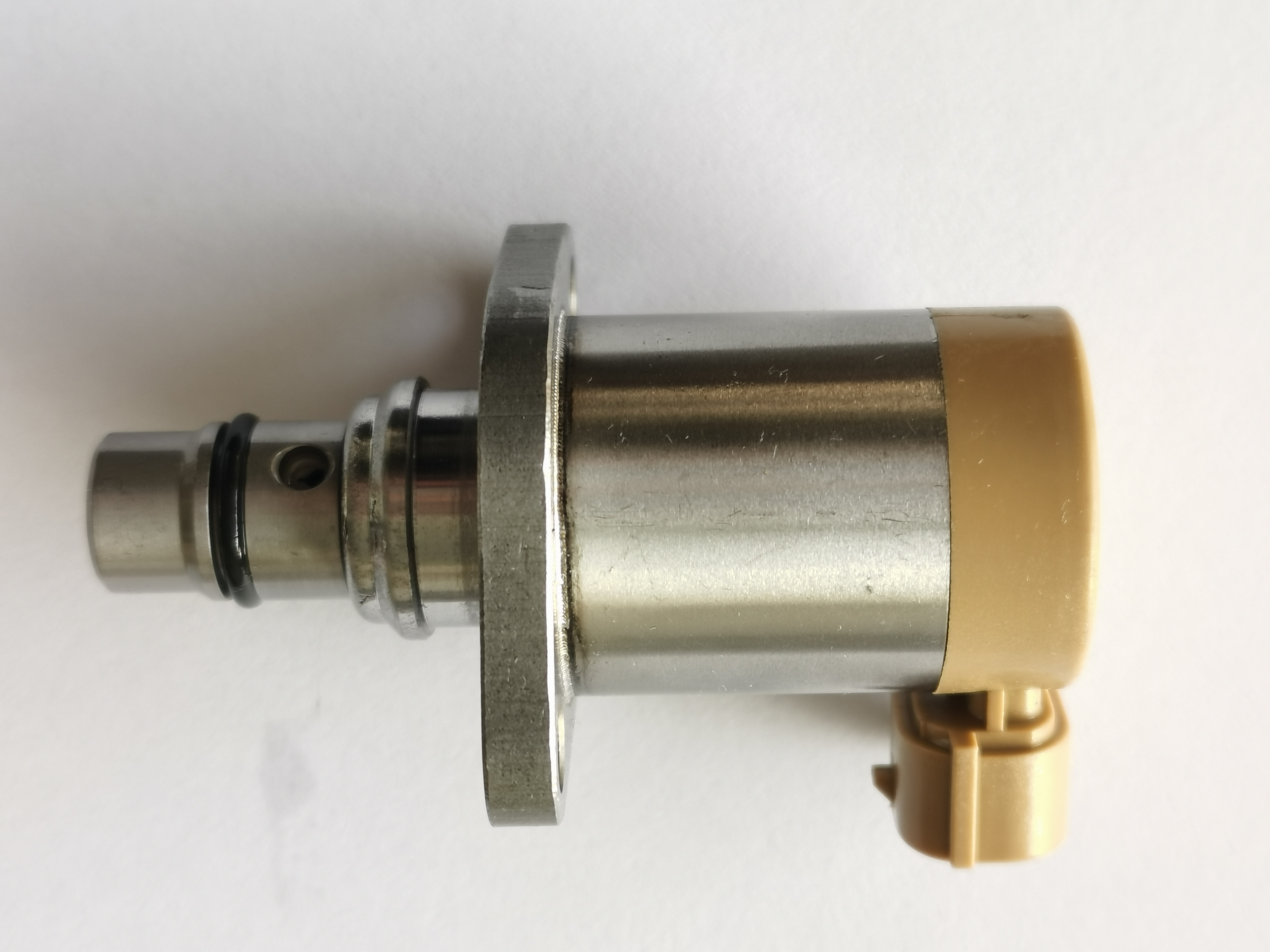

Side View with 424 Overhaul Kit 294200-2850 of Hino Dutro N04C-T
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 2 Toyota SCV Valve 2942002850 Fitting on 22100-E0550
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

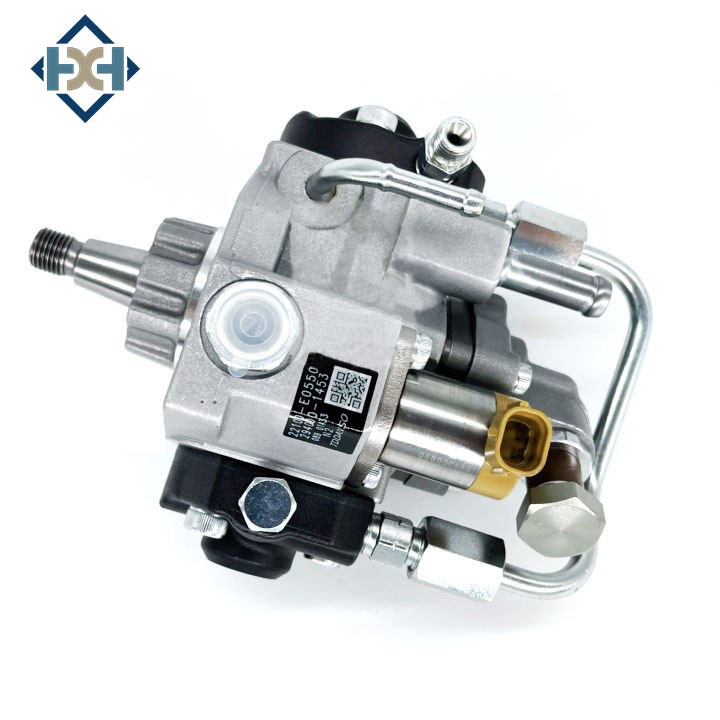

FIGURE 3 Toyota SCV Valve 294200-2850 Fitting on 294000-1441
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Make: | Toyota/Hino |
| Model: | Toyota COASTER/Hino Dutro TKG-XZC655M//A860E/N04CTM/300 |
| Submodel: | / |
| Engine Type: | / |
| Engine Family: | N04C-T 4000CC Diesel |
| Engine Size: | / |
| Fuel Type: | Diesel |
| Regulator Usage: | Fuel Injection Pump Repairing |
| Replaces OEM Part Number (application): | Instead of Hino 04226-E01*0 |
A fuel pressure regulator, also named a suction control valve, or SCV valve, helps maintain the fuel pressure in the Fuel Injection System. If the fuel injection system needs more fuel pressure, the fuel pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality, and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like 294200-2850 Diesel Metering Valve.
Ningbo Henshine Precision Machinery Co., Ltd>>>About Us
7# Bangxing Road, Maoshan Industrial Park,
Jiangshan Town,Ningbo,China
Condition: Brand NEW
Manufacturer Part Number: 294200-2850
Other Numbers: Toyota 04226-E01*0/04226-E01*0
Brand: HENSHINE
Material: Plastic, Iron
Delivery time: 1-3days/5-12days
Colour: Silver & Brown
Surface Finish: 100% New
Placement on Vehicle: Toyota COASTER/Hino Dutro TKG-XZC655M//A860E/N04CTM/300
Pump: Denso OE 294050-1453, 294000-1441/2/3, 294000-2700 & etc
Original Number: 22100-E0550, 22100-E0551, 22100-E0540, 22100-E0541
Type: Suction Control Valve/ SCV
Packing: Customized/No. 3/4 Natural Box & Henshine Box
Warranty: 1 year
Min Sample Order: 20 pcs
Production Capacity: 5300 pcs per month
Means of Transport: Ocean, Land, Air, Express
Payments: Visa, Mastercard, T/T, WesternUnion, Online Transfer, Cash on pickup
What Is a SCV? >> check here
The suction control valve (SCV) controls the fuel pressure in the common rail diesel engine. The use tolerance of SCVs is very small and will soon be affected by contaminated fuel and / or fouling.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
SCV 294200-2850 For Toyota/ Hino
Other Names for SCV:
Suction Control Valve
FCA
Injection Pressure Regulator
Fuel Pressure Regulator
Fuel Control Actuator
Measuring Unit
Fuel Measurement Solenoid Valve
Compatible Vehicles for Toyota Coaster04226-E01*0:
Toyota Coaster
XZB40
XZB46V
XZB50
XZB51
XZB56V
Toyota Dyna / Toyoace
XKC605
XKC645
XKC655
& etc
An ECU operated suction control valve (SCV) or Pump Suction control valve (FMCV) located on the back of the high-pressure supply pump is utilised for this purpose. which controls the output volume and pressure in the fuel rail.
Generally, the SCV is available as a replacement unit for a range of CRD supply pumps.
The supply pump only compresses the amount of fuel needed to maintain the rail pressure required.
This assists in reducing emissions by reducing engine operating load.
Reducing fuel flow during operation also results in lower fuel temperatures.
Common typical faults affecting SCV operation.
Excess wear, contaminated fuel or an electrical malfunction with the SCV or FMCV can create major driveability problems and possible no start condition.
Figure 1 Cutaway of Hino Dutro 22100-E0541 Pump Pressure Regulator 294000-2700 contains Overhaul Kit 04226-E01*0
