| OE Number: | LR006866 | Description: | Pressure Limiter Valve |
| Warranty: | 12 Months | Material: | Iron and plastic |
| Delivery time: | 7-15 days for bulk order/ 1-3 days for sample order | Packing: | Customized/Natural/Henshine |
| Surface Finish: | All NEW/ Original Quality | Colour: | Silver |
| Fitted on: | ISUZU/OPEL/JONH DEERE | ||
| Land Rover | |||
Defender 90 2.4 TD4 122 bhp 2007 | |||
| Defender 110 2.4 TD4 122 bhp 2007 | |||
| Defender 130 2.4 TD4 122 bhp 2007 | |||
Check the video of Inlet Metering Valve LR006866 on Youtube
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:
Side View of valve assy LR006866 Pressure Limiter of Land Rover Defender
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

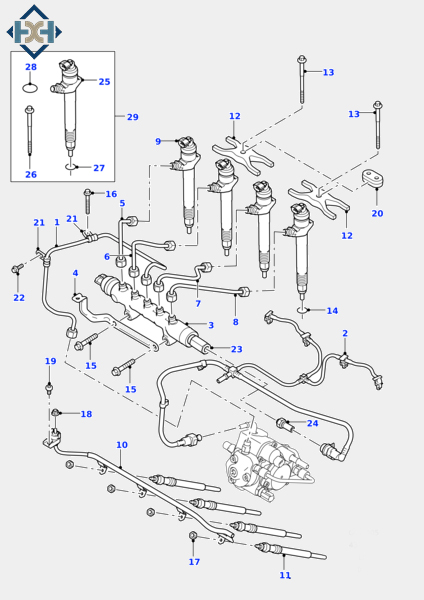

FIGURE 2 LR006866 Pressure Limiter Valve Fitting on Common Rail LR006865 Land Rover
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

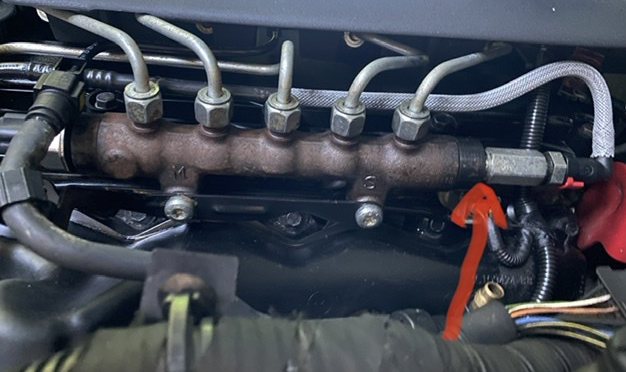

FIGURE 3 Pressure Relief Valve LR006866 with Common Rail LR06865 engine 2.4L TD4 122 bhp
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

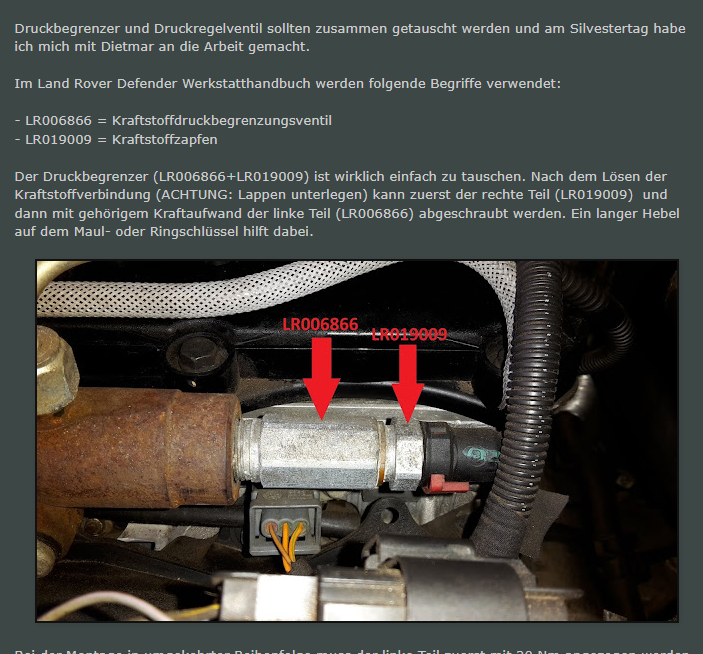

It started slowly and just got bigger and bigger. After starting in the morning, the engine cut out 4-5 times in the first 500 meters.
It felt like the diesel was abruptly cut off or something was stopping the Landy abruptly. Quickly stepping on the clutch only helped sometimes, but generally, the engine just died. There was no warning light on the dashboard to indicate a malfunction and the engine could be restarted again and again without problems.
After research and determined there was a problem with the common rail fuel injection.
| Make: | Land Rover |
| Model: | Defender 90/110/130 2.4l TD4 122 bhp 2007 |
| Submodel: | / |
| Engine Type: | 2.4L Duratorq-TDCi HPCR(140PS) 2.4 TD4 122 bhp |
| Engine Family: | / |
| Engine Size: | / |
| Fuel Type: | Diesel |
| Regulator Usage: | Fuel Common Rail Repairing |
| Replaces OEM Part Number (application): | Instead of Land Rover LR006866 |
Condition: Brand NEW/ Genuine Quality
Manufacturer Part Number: LR006866
Other Numbers: 095420-0230
Manufacturer: Made by HENSHINE
Rail: LR006865
Type: Pressure Limiter Valve/ PLV
Min Sample Order: 15 pcs
Production Capacity: 1,800 pcs/month
Means of Transport: Ocean, Land, Air, Express
Payments: Visa, Mastercard, T/T, WesternUnion, Online Transfer, Cash on pickup
Land Rover Fuel Injection Pump LR009587 294000-0950
Fuel Injector Assy LR006803 Land Rover Defender
Fuel Supply Manifold LR006865
Rail Perssure Sensor 45PP3-1
LR006866 Pressure Limiter Valve instead of Land Rover Defender 90/110/130 in 2007 for engine 2.4L TD4/ Duratorq-TDCi
+Diesel Common Rail System/Fuel Injection System
-Components of Fuel Common Rail/ High-pressure Common Rail
-Prssure Limiter Valve/ Fuel Rail Pressure Control Valve; Pressure Releif Valve; Fuel Rail Pressure Regulator

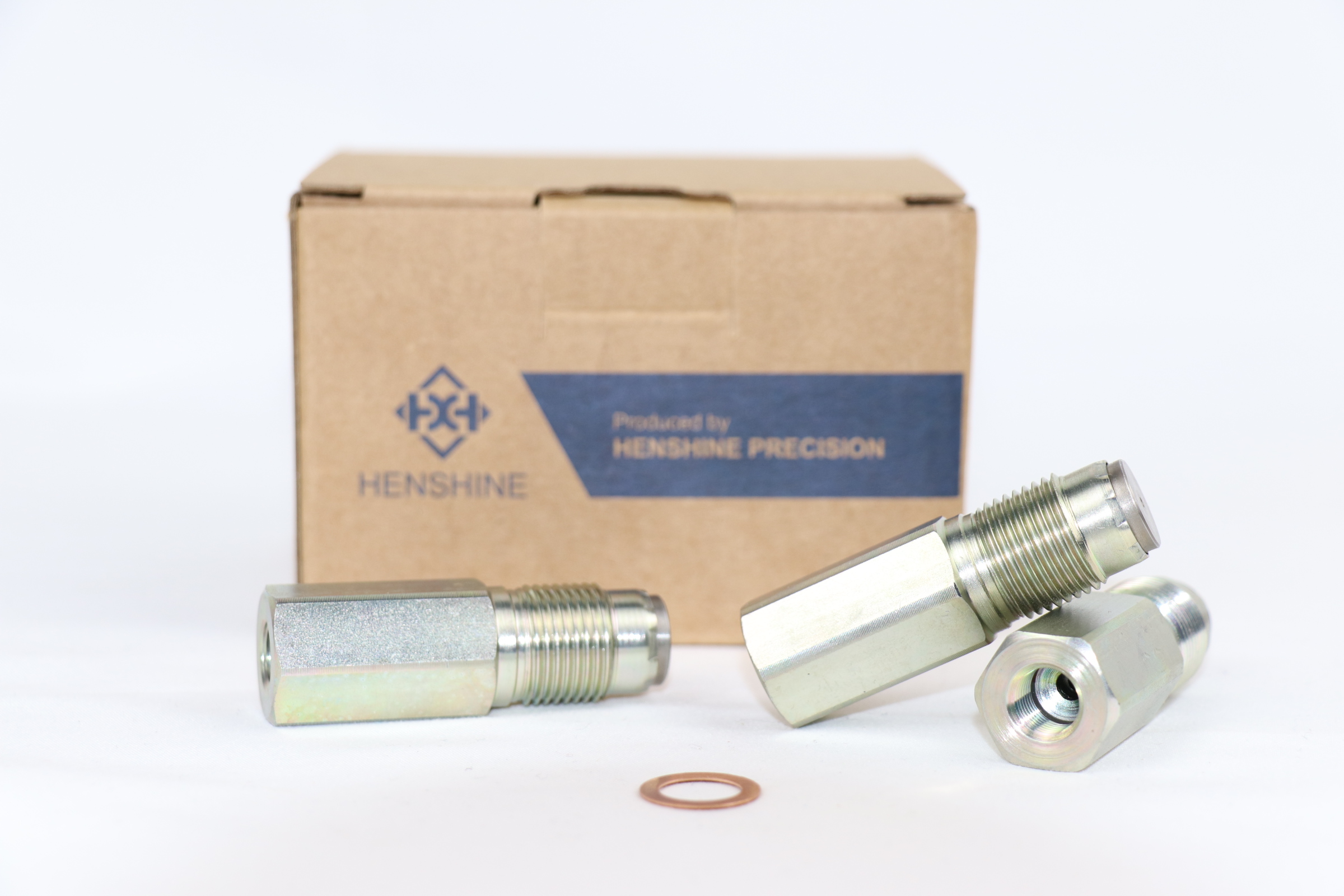

LR006866 Pressure Limiter Valve for Fuel Supply System used on Fuel Common Rail in GM/ Opel/ ISUZU/ John Deere & etc Made by Ningbo Henshine Precision Machinery
The Pressure Limiter Valve LR006866 is generally installed at the common rail of the fuel system. It is a pressure relief valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure common rail, thereby controlling the oil pressure in the fuel pipe. The good work of this component can not only ensure
that the vehicle can run normally but also enable the engine to run in the most fuel -- efficient state to achieve the effect of saving fuel.
2017-03-14
What is a Pressure Limiter Valve? >> check here
The Pressure Limiter Valve (PLV) controls the fuel pressure in the common rail diesel engine. The use tolerance of PLV is very small and will soon be affected by contaminated fuel and / or fouling.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
An ECU operated Inlet metering valve (IMV) or Rail Pressure Limiting Valve (PLV) located on the side of the high-pressure common rail is utilised for this purpose. which controls the output volume and pressure in the fuel rail.
Generally, the PLV is available as a replacement unit for a range of Fuel Common Rail.
The Common Rail only compresses the amount of fuel needed to maintain the rail pressure required.
This assists in reducing emissions by reducing engine operating load.
Reducing fuel flow during operation also results in lower fuel temperatures.
Common typical faults affecting PLV operation.
Excess wear, contaminated fuel, or an electrical malfunction with the Pressure Limiter Valve or Pressure Sensor can be created major driveability problems and possible fuel pressure conditions.
A pressure relief valve, also named a Pressure Limiter Valve, or PLV Valve, helps maintain the fuel pressure in the Common Rail System. If the fuel common rail is in over high fuel pressure, the fuel pressure limiter valve releases overmuch pressure from the common rail. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality, and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like LR006866 Diesel Fuel Rail Pressure Limiter Valves.
