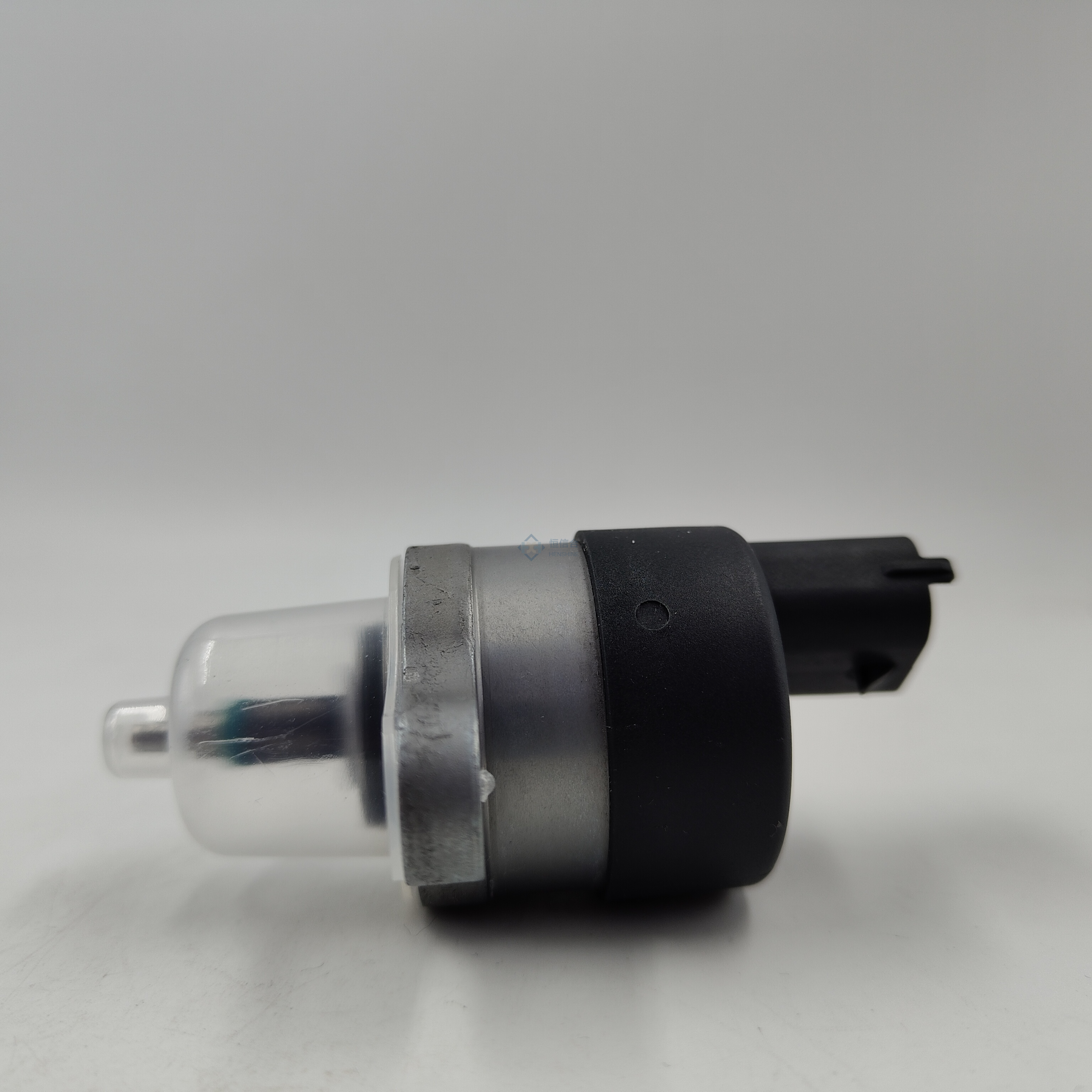

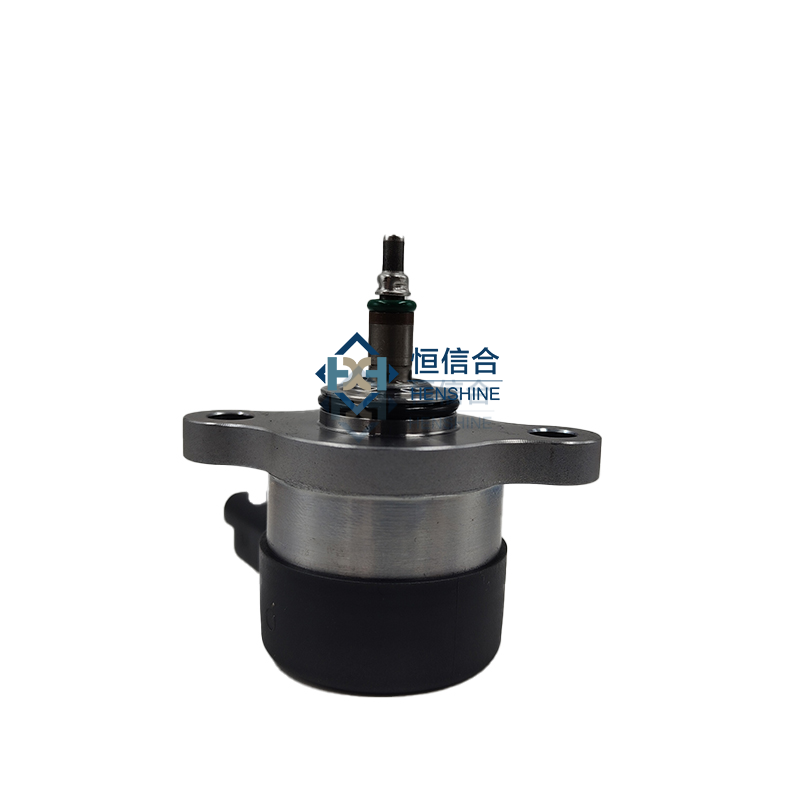

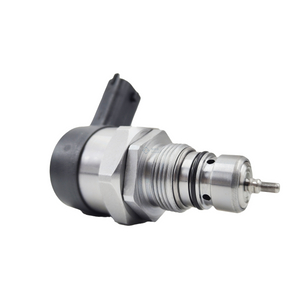

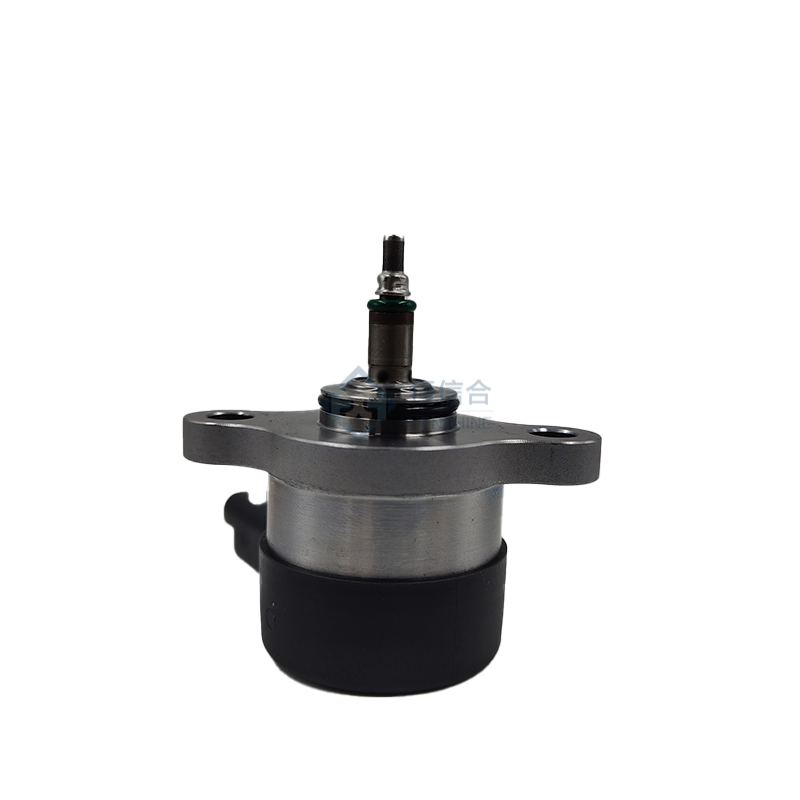

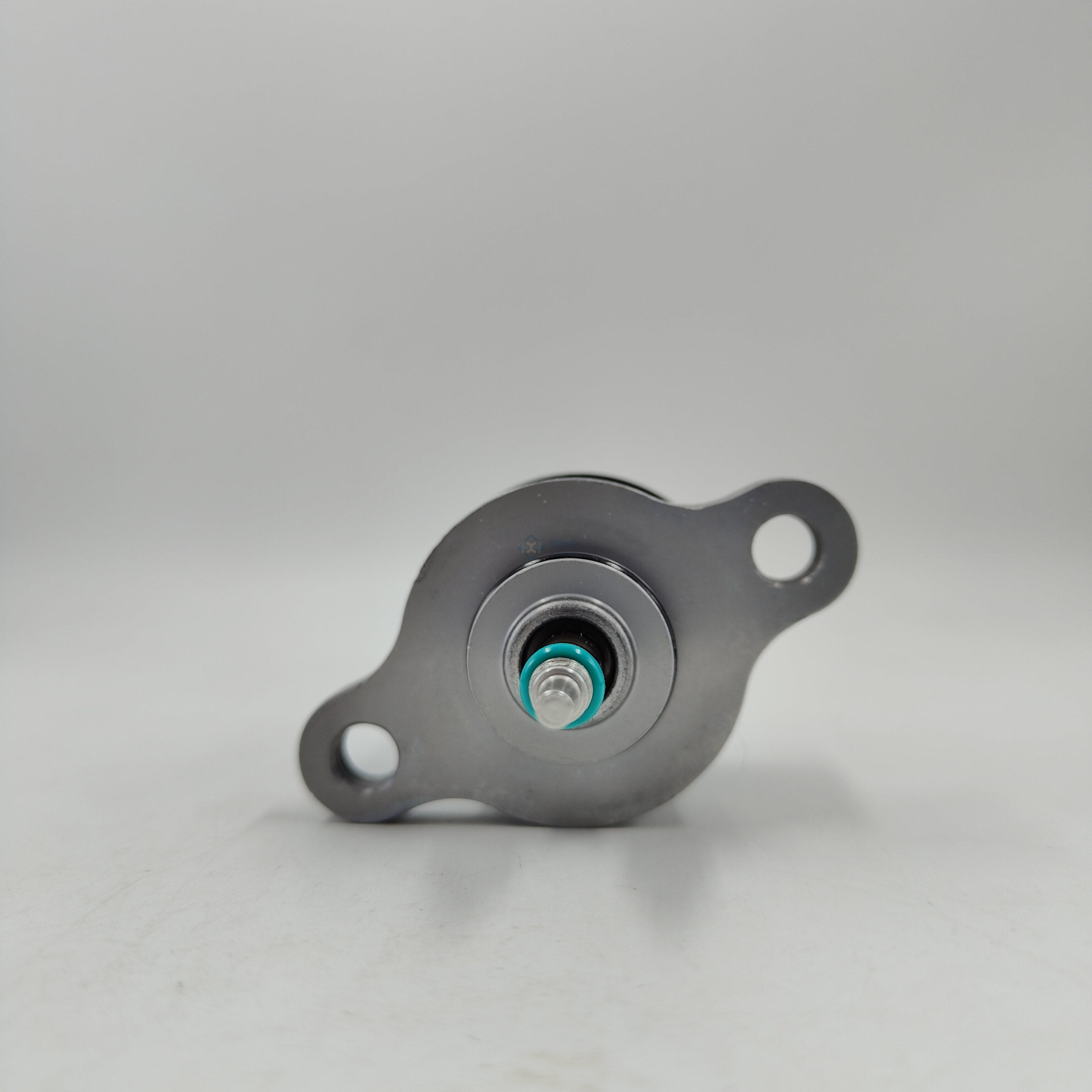

Fuel Pressure Control Valve 0281002500 DRV

Name: Fuel Pressure Control Valve 0281002500 DRV
Brand: Henshine
Rating: 5.0 (10 reviews)

Availability:



Inquire

Model:
0281002500
Brand:
Henshine

Product Description

00281002500
Fuel Pressure Control Valve
Fuel Pressure Regulator

The fuel pressure control valve comprises a fuel-cooled solenoid valve.
The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 KHz.
When the pressure control valve is not activated, its internal spring maintains
a fuel pressure of about 100 Bar. When the valve is activated,
the force of the electromagnet aids the spring, reducing the opening of the valve
and so increasing fuel pressure. The fuel pressure control valve also acts as
a mechanical pressure damper, smoothing the high frequency pressure pulses
emanating from the radial piston pump when less than three pistons are activated.

THIS ITEM IS SUITABLE FOR VEHICLES :

Car	Manufactured time	KW	HP	cc3
forFIAT DUCATO Bus (244_) 2.8 JTD	12.01-	94	128	2798
forFIAT DUCATO Bus (244_) 2.8 JTD 4x4	12.01-07.06	94	128	2798
forFIAT DUCATO Platform/Chassis (244_) 2.8 JTD	12.01-07.06	94	128	2798
forFIAT DUCATO Platform/Chassis (244_) 2.8 JTD 4x4	12.01-07.06	94	128	2798
forFIAT DUCATO Van (244_) 2.8 JTD	12.01-12.11	94	128	2798
forFIAT DUCATO Van (244_) 2.8 JTD 4x4	12.01-07.06	94	128	2798
