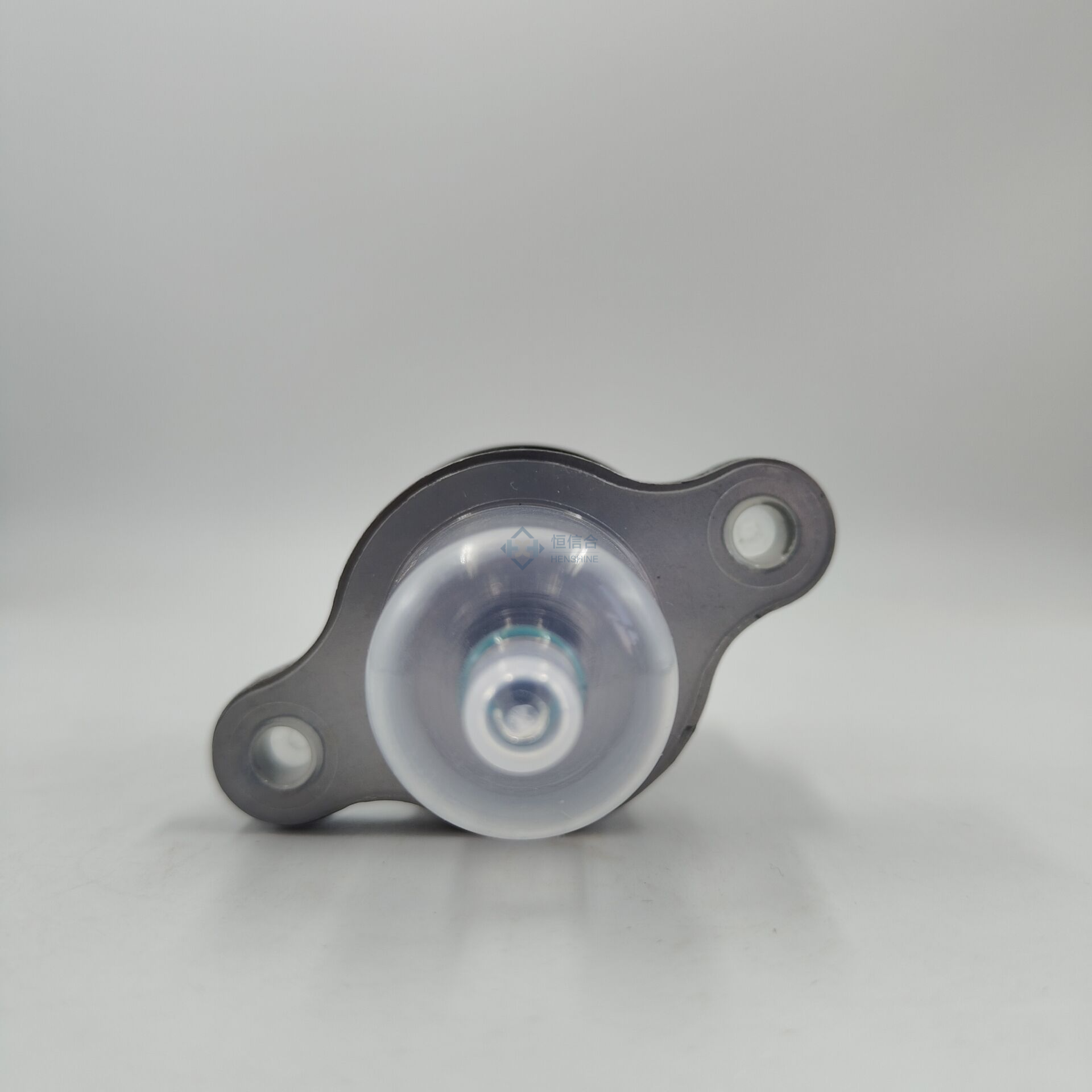

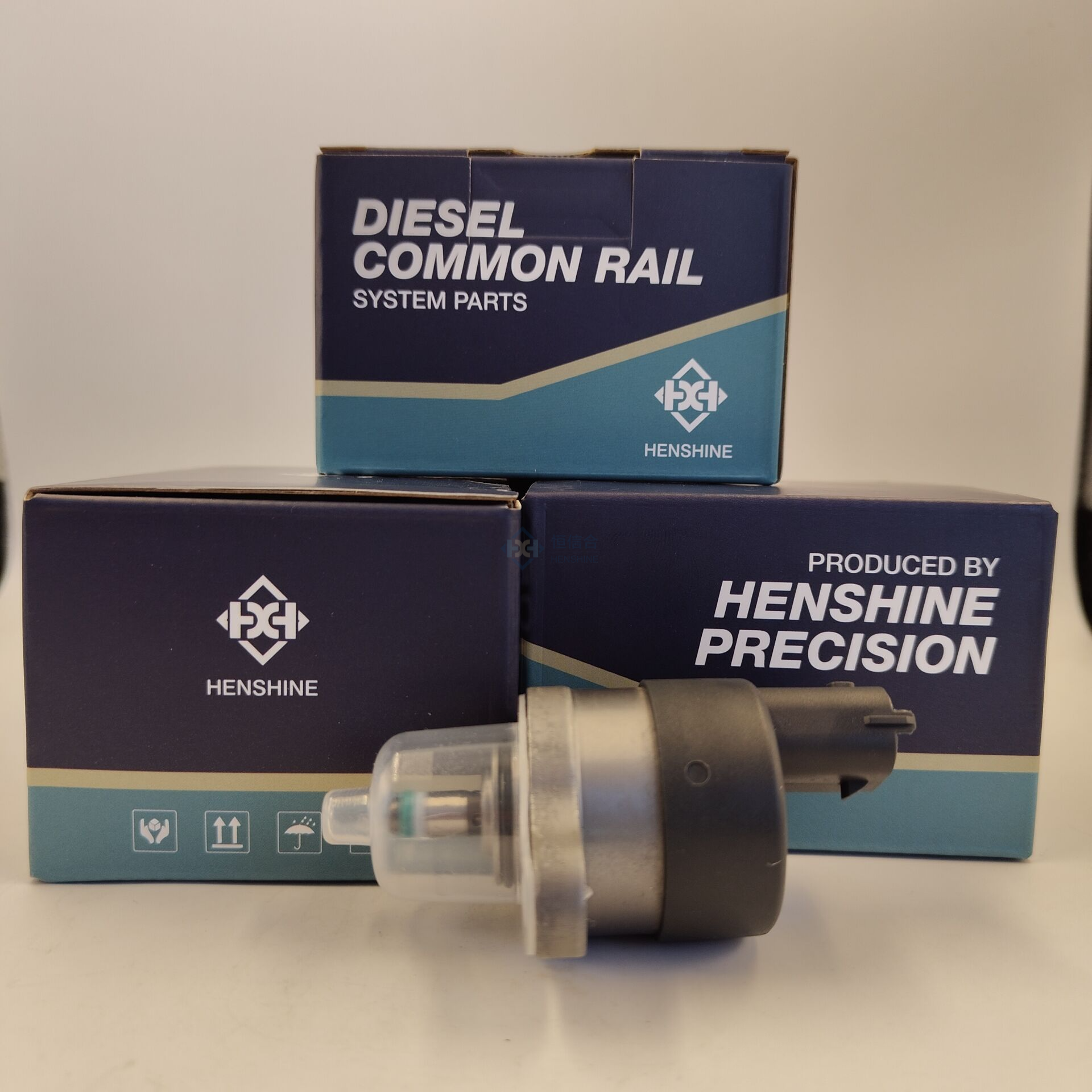

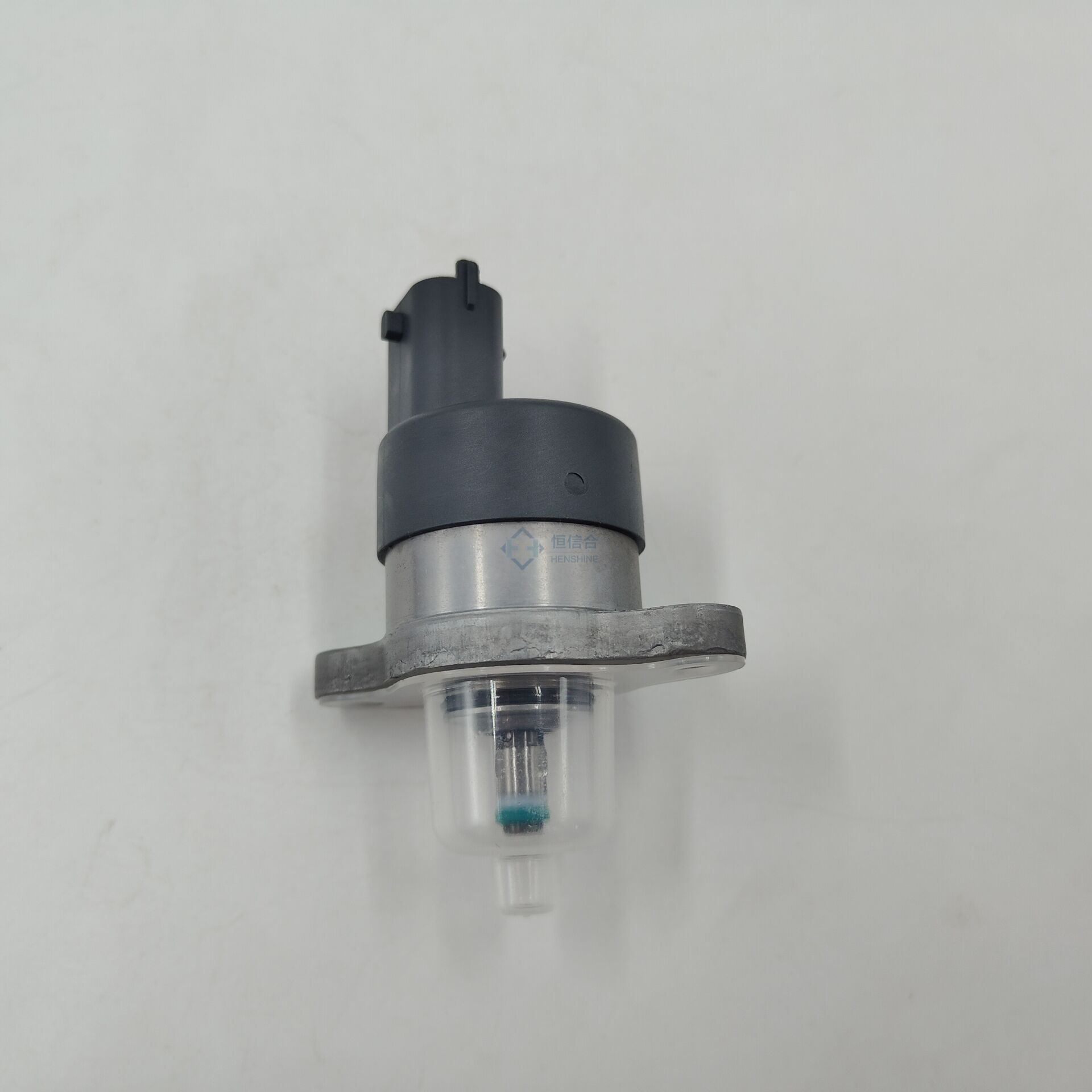

Fuel Pressure Control Valve 0281002483 Engine accessories DRV

Name: Fuel Pressure Control Valve 0281002483 Engine accessories DRV
Brand: Henshine
Rating: 5.0 (76 reviews)

Availability:



Inquire

Model:
0281002483
Brand:
Henshine

Product Description

0281002483
Fuel Pressure Control Valve
Fuel Pressure Regulator

The fuel pressure control valve comprises a fuel-cooled solenoid valve.
The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 KHz.
When the pressure control valve is not activated, its internal spring maintains
a fuel pressure of about 100 Bar. When the valve is activated,
the force of the electromagnet aids the spring, reducing the opening of the valve
and so increasing fuel pressure. The fuel pressure control valve also acts as
a mechanical pressure damper, smoothing the high frequency pressure pulses
emanating from the radial piston pump when less than three pistons are activated.

THIS ITEM IS SUITABLE FOR VEHICLES :

Car model	Manufactured time	KW	HP	cc3
forRENAULT KANGOO (KC0/1_) 1.9 dCi 4x4	10.2003-	62	84	1870
forRENAULT KANGOO (KC0/1_) 1.9 dCi 4x4 (KC0V)	10.2001-	59	80	1870
forRENAULT KANGOO Express (FC0/1_) 1.9 dCi (FC0V)	07.2003-	62	84	1870
forRENAULT KANGOO Express (FC0/1_) 1.9 dCi 4x4 (FC0V)	10.2001-	59	80	1870
forRENAULT KANGOO Express (FC0/1_) 1.9 dCi 4x4 (FC0V)	07.2003-	62	84	1870
forRENAULT LAGUNA Grandtour (K56_) 1.9 dCi (K56W)	09.1999-03.2001	79	107	1870
forRENAULT LAGUNA I (B56_, 556_) 1.9 dCi (B56W)	09.1999-03.2001	79	107	1870
forRENAULT LAGUNA II (BG0/1_) 1.9 dCi	03.2001-	79	107	1870
forRENAULT LAGUNA II (BG0/1_) 1.9 dCI (BG0E)	06.2001-	77	105	1870
forRENAULT LAGUNA II (BG0/1_) 1.9 dCi (BG0R)	10.2001-	74	100	1870
forRENAULT LAGUNA II Grandtour (KG0/1_) 1.9 dCi	03.2001-	79	107	1870
forRENAULT LAGUNA II Grandtour (KG0/1_) 1.9 dCI (KG0E)	06.2001-	77	105	1870
forRENAULT LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG0E, KG0R)	10.2001-	74	100	1870
forRENAULT MEGANE I (BA0/1_) 1.9 DCi	03.1999-08.2003	77	105	1870
forRENAULT MEGANE I (BA0/1_) 1.9 dCi (BA05, BA1F)	02.2001-08.2003	75	102	1870
forRENAULT MEGANE I Classic (LA0/1_) 1.9 dCi	03.1999-09.2000	77	105	1870
forRENAULT MEGANE I Classic (LA0/1_) 1.9 dCi (LA05, LA1F)	02.2001-08.2003	75	102	1870
forRENAULT MEGANE I Coach (DA0/1_) 1.9 dCi (DA05, DA1F)	02.2001-08.2003	75	102	1870
forRENAULT MEGANE I Grandtour (KA0/1_) 1.9 dCi (KA05, KA1F)	02.2001-08.2003	75	102	1870
forRENAULT SCÉNIC I (JA0/1_) 1.9 dCi (JA05, JA1F)	09.1999-08.2003	75	102	1870
forRENAULT SCÉNIC I (JA0/1_) 1.9 dCi RX4	11.2000-08.2003	75	102	1870
forRENAULT SCÉNIC I (JA0/1_) 1.9 dCi RX4	12.2002-08.2003	74	101	1870
