0928400673
Henshine
252673
Brand New
0928400673
09284006*4
HXH
12 Months
Plastic, Iron
12-15 days
Black and Gray
NEW/ High Quality
Hummber/GMC/Chevrolet
09284006*4
FUEL METERING VALVE/Fuel Pressure Regulating Valve
N/A
Netural, Henshine & OEM
Fuel Metering Valve
0 928 400 673 Genuine Quality GM Fuel Pressure Regulator| Henshine Precision Machinery Co., Ltd
+Diesel Common Rail System/Fuel System
-Components of High-pressure Pump/Fuel Supply Pump
-IMV Valve/Fuel Pressure Regulating Valve; Fuel Metering Valve
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

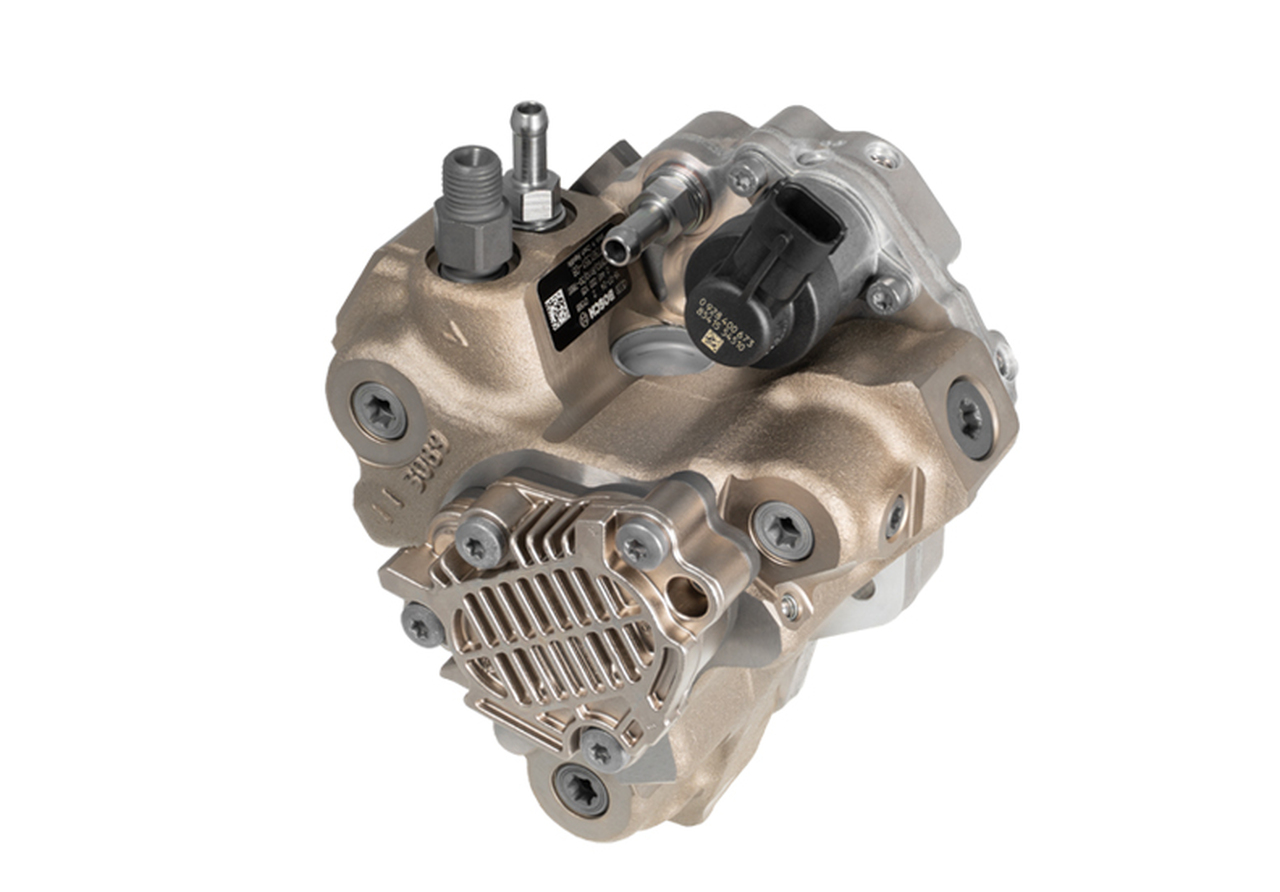

FIGURE 2: Neutral Package GM Valve 0928400673 Fitting on 044 020 037
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 3 : Neutral Package GM Valve 0928400673 Fitting on 0445 020 037
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

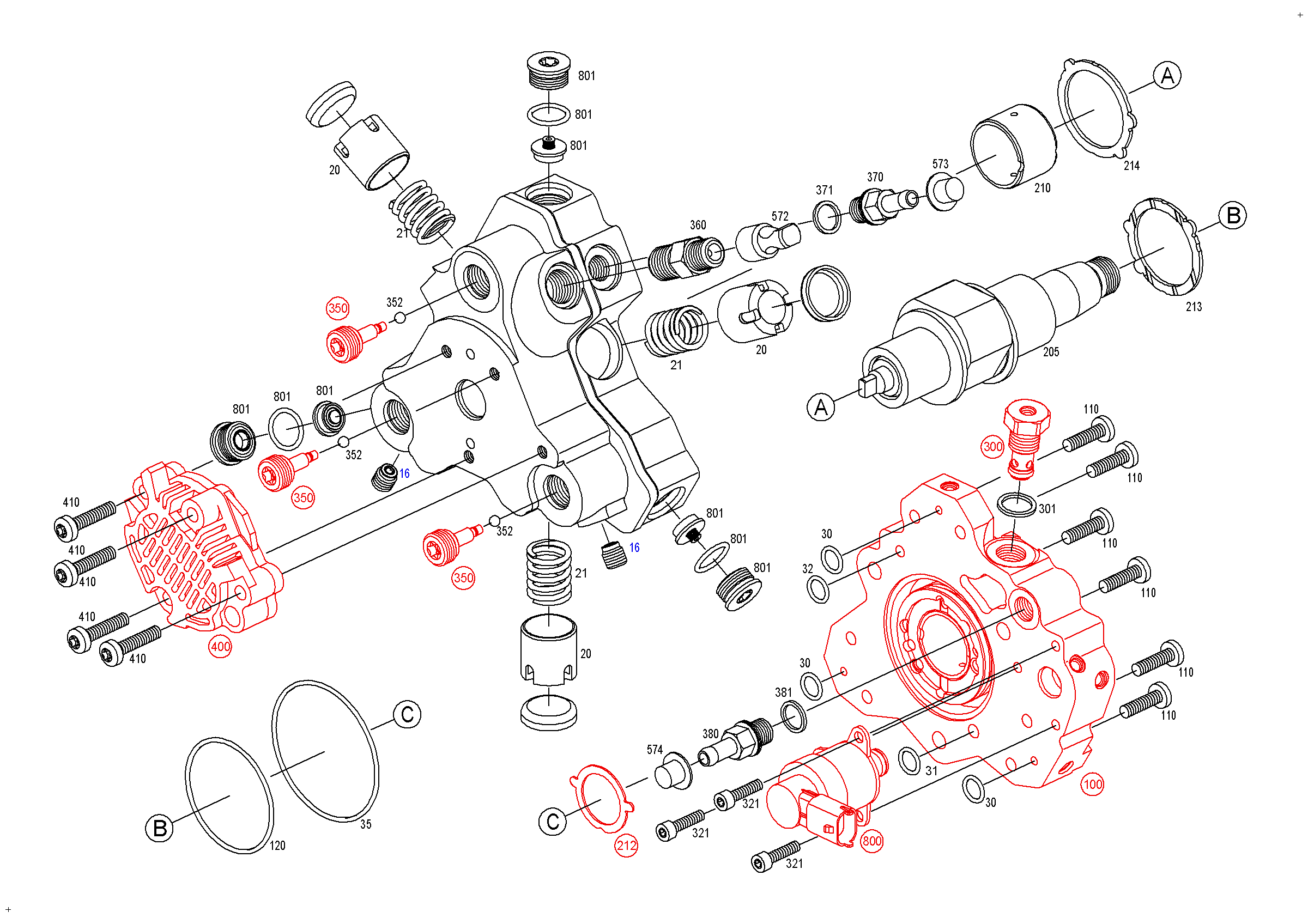

FIGURE 4: Cutaway of GM High-pressure Pump 0445 020 105 contains the Donsing Unit 0928400673
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| ORDER NUMBER | DESIGNATION | CODE | POSITION | QUANTITY |
| F 00N 201 507 | SCREW PLUG | F00N201507 | 16 | 2 |
| F 00N 202 577 | TAPPET | F00N202577 | 20 | 3 |
| F 00N 200 141 | COMPRESSION SPRING | F00N200141 | 21 | 3 |
| F 00N 201 745 | O-RING | F00N201745 | 30 | 3 |
| F 00N 201 745 | O-RING | F00N201745 | 31 | 1 |
| F 00N 201 745 | O-RING | F00N201745 | 32 | 1 |
| F 00R 0P0 341 | O-RING | F00R0P0341 | 35 | 1 |
| F 00N 203 238 | FLANGE | F00N203238 | 100 | 1 |
| F 00N 202 191 | TORX FILLISTER SCREW | F00N202191 | 110 | 6 |
| F 00R 0P0 352 | O-RING | F00R0P0352 | 120 | 1 |
| F 00N 202 970 | ECCENTRIC SHAFT | F00N202970 | 205 | 1 |
| F 00N 202 755 | ECCENTRIC SHAFT | F00N202755 | 205 | 1 |
| F 00N 200 845 | BUSHING | F00N200845 | 210 | 1 |
| SELECTION GROUP THRUST RING | 212 | 1 | ||
| F 00R 0P0 689 | THRUST RING, 1,95 MM | F00R0P0689 | 213 | 1 |
| F 00R 0P0 689 | THRUST RING, 1,95 MM | F00R0P0689 | 214 | 1 |
| OVERFLOW VALVE | 300 | 1 | ||
| 2 916 710 609 | FLAT SEAL RING, DIN 7603 - A14x18-Cu | 2916710609 | 301 | 1 |
| F 00N 202 192 | TORX FILLISTER SCREW | F00N202192 | 321 | 3 |
| NON-RETURN VALVE | 350 | 3 | ||
| F 00R 0P0 619 | BALL | F00R0P0619 | 352 | 3 |
| F 00N 201 441 | FITTING | F00N201441 | 360 | 1 |
| F 00N 202 301 | FITTING | F00N202307 | 370 | 1 |
| 2 916 710 607 | FLAT SEAL RING, DIN 7603 - A12x15,5-Cu | 2916710607 | 371 | 1 |
| F 00N 202 301 | FITTING | F00N202307 | 380 | 1 |
| 2 916 710 607 | FLAT SEAL RING, DIN 7603 - A12x15,5-Cu | 2916710607 | 381 | 1 |
| 0 440 020 108 | GEAR PUMP | 440020108 | 400 | 1 |
| F 00N 202 193 | TORX OVAL-HEAD SCREW | F00N202193 | 410 | 4 |
| F 00N 200 397 | PROTECTIVE CAP | F00N200397 | 572 | 1 |
| F 00N 202 349 | PROTECTIVE CAP | F00N202349 | 573 | 1 |
| F 00N 202 349 | PROTECTIVE CAP | F00N202349 | 574 | 1 |
| 0 928 400 673 | MEASURING UNIT | 928400673 | 800 | 1 |
| F 00N 202 354 | PARTS SET SUCTION VALVE | F00N202354 | 801 | 3 |
