1 810 413
Henshine
/
New, Original quality
1 810 413 Ford OE
Bosch 1462C00997
Henshine
12 Months
Iron and plastic
12-15 days
black and silver
NEW/ Original Quality
DACIA/ RENAULT/ FORD/ CITROEN/PEUGEOT/ FIAT
09284****8
FUEL INLET METERING VALVE
N/A
Netural, Henshine & OEM

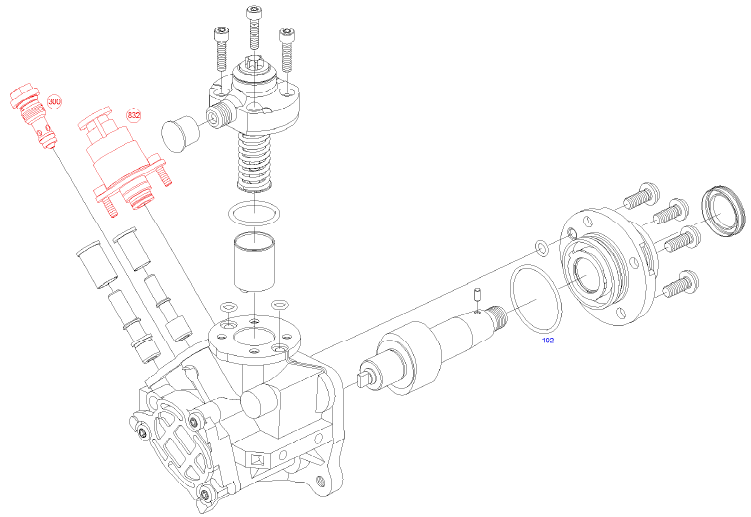

FIGURE 1 Cutaway of GMC High-pressure Pump 0445010516 contains the Metering Unit 1 810 413
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| REPLACING PARTS: | ||||
| ORDER NUMBER | DESIGNATION | CODE | POSITION | QUANTITY |
1 810 413 Fuel Metering Valve for Fuel Supply Pump used on DACIA/ RENAULT/ FORD/ CITROEN/PEUGEOT/ FIAT Made by Ningbo Henshine Precision Machinery
The Fuel Metering Valve 1 810 413 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure that the vehicle can run normally but also enable the engine to run in the most fuel- efficient state to achieve the effect of saving fuel.
2017-06-18
Fuel Metering Valve
1 810 413 Fuel Metering Valve Instead of Ford OE 1462C00997 Fuel Supply System Repairing Components
+Diesel Common Rail System/Fuel System
-Components of High-pressure Pump/Fuel Supply Pump
-IMV Valve/Fuel Pressure Regulating Valve; Fuel Metering Valve
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:
FIGURE 1 Side View of GMC Fuel Metering Valve 1 810 413
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 3 Neutral Package GMC Control Valve 1 810 413 Fitting on 0445010516
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Make: | FORD 1 810 413 |
| Model: | DACIA/ RENAULT/ FORD/ CITROEN/PEUGEOT/ FIAT |
| Submodel: | SANDERO II// CLIO Grandtour IV/ CLIO IV/ DOKKER Express |
| Year: | 2012/ 2013 |
| Engine Type: | / |
| Engine Family: | K9K 612/ K9K 626/ K9K 872 |
| Engine Size: | 1.5 dCi |
| Fuel Type: | Diesel |
| Regulator Usage: | Stock |
| Replaces OEM Part Number (application): | Bosch 1462C00997 |
Condition: Brand NEW
Manufacturer Part Number: 1 810 413
Other Numbers: 0 928 400 ***/ FIAT 9806448980
Brand: HENSHINE
Material: plastic, iron
Delivery time: 1-3days
Colour: Silver & Black
Surface Finish: High Quality
Placement on Vehicle: CHEVROLET/GMC
Original Number: 1462C00997
Type: Fuel Pressure Regulator/ IMV
Packing: No 3/4 Natural Box & Henshine Box
Warranty: 1 year
Min Order: 10 pcs
Production Capacity: 8130 pcs per month
Means of Transport: Ocean, Land, Air,express
Payments: Visa, Mastercard, T/T, Online Transfer, Cash on pickup
A fuel pressure regulator, also named a suction control valve, or IMV valve, helps maintain the fuel
pressure in the Fuel Injection System. If the fuel injection system needs more fuel pressure, the fuel
pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like 1 810 413 Diesel Metering Valve.
