0928400752
Henshine
258
New, Genuine Quality
0928400752
1462C0098*
HXH
12 Months
Iron and plastic
7-15 days
Black and Silver
NEW/Genuine Quality
Hyundai IX35/ 4JH45/ 4JH57/ HYDROSTATIC Tractor RK37H/ HYUNDAI SANTA FE III
09284008*
Vertical
N/A
Netural, Henshine & OEM

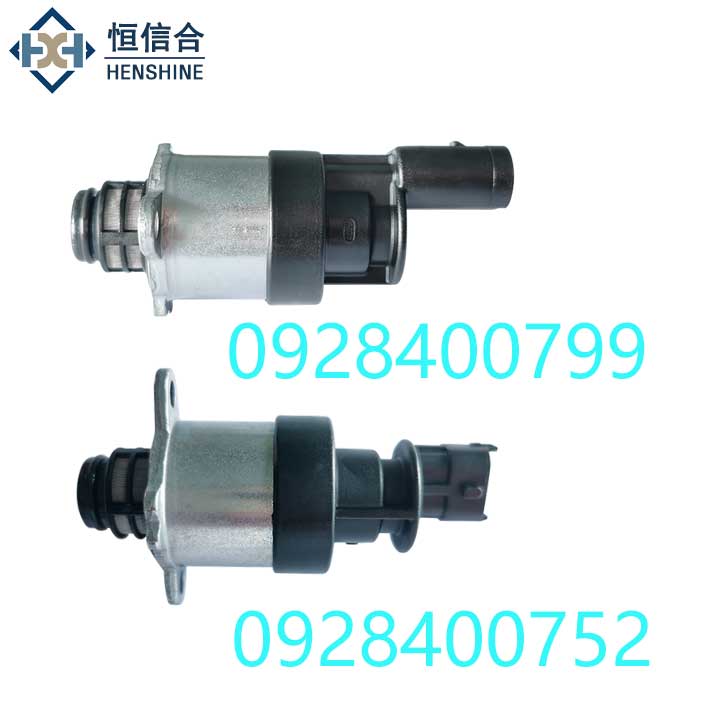

compared 0928400752 with the analogs 0928400799
Cutaway of Tractor High-pressure Pump 0445020509 including inlet metering valve 0928400752
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Ref | Description | Part No. | BOM Qty |
| 1 | INJECTOR, CR | 129675-53100 | 4 |
| 2 | RING, RETAINING | 129A00-53200 | 4 |
| 3 | COMMON RAIL ASSY | 129C00-57000 | 1 |
| 4 | SENSOR, PRESSURE | 129A00-57100 | 1 |
| 5 | VALVE ASSY, PLV4 | 129A00-57200 | 1 |
| 6 | O-RING, PLV4 | 129A00-57210 | 1 |
| 7 | BRACKET, COMMON RAIL | 129677-57201 | 1 |
| 8 | BOLT, M8X 20 PLATED | 26106-080202 | 4 |
| 9 | RETAINER | 122780-59100 | 4 |
| 11 | PIPE ASSY, RAIL IN | 129677-59700 | 1 |
| 13 | PIPE, INJECTION NO.1 | 129677-59810 | 1 |
| 14 | PIPE, INJECTION NO.2 | 129677-59820 | 1 |
| 15 | PIPE, INJECTION NO.3 | 129677-59830 | 1 |
| 16 | PIPE, INJECTION NO.4 | 129677-59840 | 1 |
| 17 | NUT, M6 | 26366-060002 | 4 |

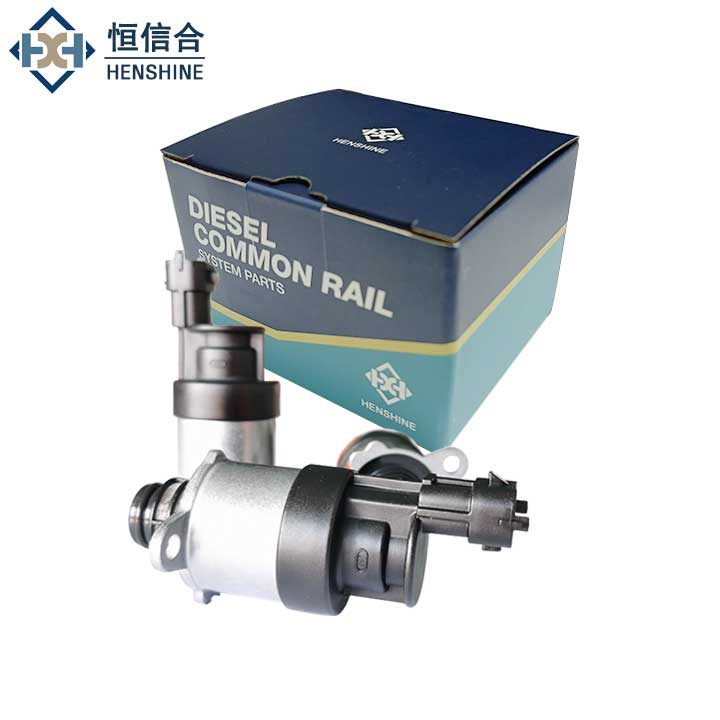

0928400752 Inlet Metering Valve for Fuel Supply System Injection Pump used on YANMAR/KIA/HYUNDAI Made by Ningbo Henshine Precision Machinery.
The Inlet Metering Valve 0928400752 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure
that the vehicle can run normally but also enable the engine to run in the most fuel -- efficient state to achieve the effect of saving fuel.
2003-7-06
Exploded Diagram of YANMAR Supply Pump 0445020538 contains metering valve 129C28-51000
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
SUCTION CONTROL VALVE
0928400752 Metering Valve for Hyundai IX35/ Hydrostatic Tractor RK37H/ KIA SORENTO/ Yanmar on D4HB/ D4HA/ 4JH45 2.2/2.0 C 129A00-51000 0445020509
+Diesel Common Rail System/Fuel Supply System
-Components of High-pressure Pump/ Supply Pump
-IMV Valve/Fuel Pressure Regulating Valve/Metering Unit
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:

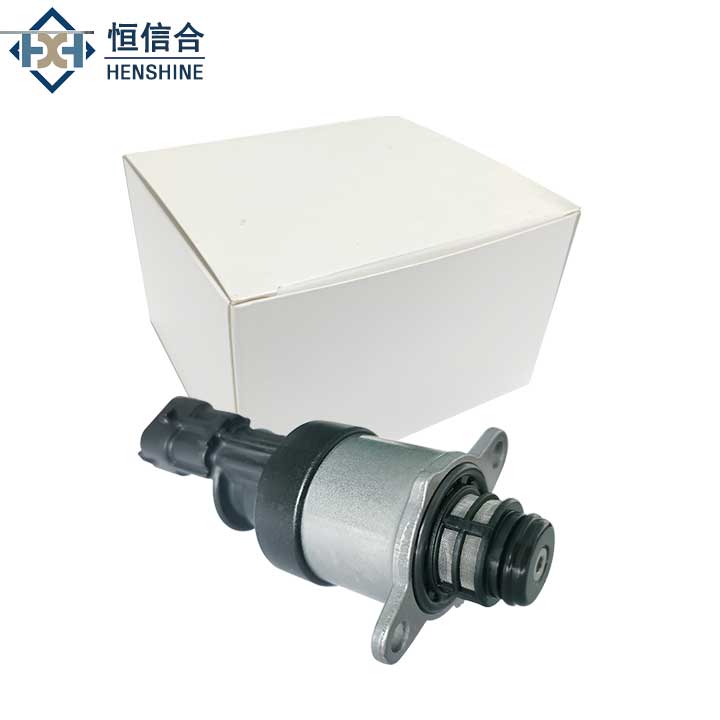

FIGURE 1 Side View of YANMAR Tractor 4JH45 Fuel Metering Valve 129A00-51100
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 2 Yangmar Tractor 4JH45 Metering Unit 0928400752 Fitting on 0445020509
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 3 Tractor RK55S/RK55SC IMV Valve 129A00-51100 Fitting on 129A00-51000
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
Bosch is concerned with an established market position, consisting of 350 companies, producing both home appliances, as well as industrial and automotive. The company's assortment is divided into three basic sections: industrial technology, utility goods and technical equipment for buildings, and automotive technology. Interestingly, the companies included in the company are located in 60 countries around the world.
On the China market, you can buy car parts of this brand, as well as diagnostic devices and systems, power tools, heating devices, and equipment in the field of drives and controls. China is also one of the countries where Bosch production plants exist.
In our offer, you will find, among others parts such as 0928400752.
The story of the German giant
The beginnings of the concern date back to the second half of the 1880s, when Robert Bosch - a German - founded the company's first branch in Stuttgart, ie the "Workshop of precision mechanics and electrical engineering". At that time, the company employed only two people who were involved in the construction of electronic equipment. A milestone in the company's history was the launch of an electromagnetic magneto, thanks to which the workshop turned into an efficiently operating factory. The growing turnover translated into the development of the company and the establishment of new factories, also outside of Robert Bosch's homeland.
The Second World War caused a certain stoppage in the company's development, but thanks to the continuous work and innovative approach to technology, the company began to increase its revenues almost immediately after the end of the war. As a result, a little over 20 years later, in the early 1970s, the Bosch group was already one of the leaders in the automotive industry and one of the production leaders in the world! The next breakthrough came in the 1990s when the managers decided to open factories in Asia and the East, which allowed for a significant reduction in production costs. As a result of this decision, the company's turnover almost doubled, which gave the concerned room for further investments and a gradual expansion of global markets.
Bosch auto spare parts parts
The concern with German origin produces parts such as 0928400752. Its standard range also includes:
High-pressure Pump 129A00-51000
Fuel Injector 129A00-53100
Common Rail 129A00-57000
Pressure Relief Valve 129A00-57200
Rail Sensor 129A00-57100
| Make: | HYUNDAI/KIA/YANMAR |
| Model: | Hyundai IX35/ 4JH45/ 4JH57/ HYDROSTATIC Tractor RK37H/ HYUNDAI SANTA FE III |
| Submodel: | / |
| Engine Type: | / |
| Engine Family: | 4JH45/4JH57 |
| Engine Size: | / |
| Fuel Type: | Diesel |
| Regulator Usage: | PUMP ASSY , FUEL |
| Replaces OEM Part Number (application): | Instead of Bosch 0 928 400 752 |
Condition: Brand NEW
Manufacturer Part Number: 0928400752
Other Numbers: YANMAR 129A00-51100
Brand: HENSHINE
Material: Plastic, Iron
Delivery time: 7-15 days
Colour: Black & Silver
Surface Finish: Brand New/Genuine Quality with aftermaket
Placement on Vehicle: Hyundai IX35/HYDROSTATIC Tractor RK37H/ HYUNDAI SANTA
Pump: 0445020509/0445020538
Original Number: OE 0928400752
Type: Inlet Metering Valve/ IMV
Packing: No 3/4 Natural Box & Henshine Box
Warranty: 1 year
Min Order: 10 pcs
Production Capacity: 2400 pcs per month
Means of Transport: Ocean, Land, Air, Express
Payments: Visa, WesternUnion, Mastercard, T/T, Online Transfer, Cash on pickup
A fuel pressure regulator, also named a suction control valve, or SCV valve, helps maintain the fuel
pressure in the Fuel Supplying System. If the fuel system needs more fuel pressure, the fuel
pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like 0928400752 Diesel Metering Valve.
The demand for the fuel metering unit >> check here
The inlet metering valve (IMV) controls the fuel pressure in the common rail diesel engine. The use tolerance of IMV is very small and will soon be affected by contaminated fuel and / or fouling.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
IMV 0928400752 FOR Hyundai IX35/HYDROSTATIC Tractor RK37H/ HYUNDAI SANTA
Interchangeable OE Numbers: 09284008*/1462C009*
Other Names for IMV:
Inlet Metering Valve
Yanmar diesel pump pressure regulator
Electronic Fuel Control Actuator
Fuel Pressure Regulator
Fuel Control Actuator
Fuel Pump Pressure Regulator
OVERHAUL KIT
Measuring Unit
IMV control valve
Fuel Pump Valve
Fuel Measurement Solenoid Valve
Compatible Vehicles for 0928400752:
| Brand | Model | Engine Code | Vehicle type | Capacity [cm3] | Engine power [kW] | Vehicle type | Year of production |
 HYUNDAI | GRAND SANTA FE | D4HB | 2.2 CRDi The drive for all | 2199 | 145 | 197 | 2013.06 - |
| HYUNDAI | GRAND SANTA FE | D4HB | 2.2 CRDi The drive for all | 2199 | 147 | 200 | 2013.09 - |
| HYUNDAI | ix35（LM、EL、ELH） | D4HA | 2.0 CRDi 4WD | 1995 | 100 | 136 | 2010.01 - |
| HYUNDAI | ix35（LM、EL、ELH） | D4HA | 2.0 CRDi | 1995 | 100 | 136 | 2010.01 - |
| HYUNDAI | ix35（LM、EL、ELH） | D4HA | 2.0 CRDi 4WD | 1995 | 135 | 184 | 2010.01 - |
| HYUNDAI | ix35（LM、EL、ELH） | D4HA | 2.0 CRDi | 1995 | 135 | 184 | 2012.01 - |
| HYUNDAI | GRAND SANTA FE (CM) | D4HA | 2.0 CRDi 4x4 | 1995 | 110 | 150 | 2010.12 - 2012.12 |
| HYUNDAI | GRAND SANTA FE (CM) | D4HA | 2.0 CRDi | 1995 | 110 | 150 | 2010.12 - 2012.12 |
| HYUNDAI | GRAND SANTA FE (CM) | D4HB | 2.2 CRDi | 2199 | 145 | 197 | 2009.01 - 2012.12 |
| HYUNDAI | GRAND SANTA FE (CM) | D4HB | 2.2 CRDi 4x4 | 2199 | 145 | 197 | 2009.01 - 2012.12 |
| HYUNDAI | SANTA FÉ III (DM, DMA) | D4HA | 2.0 CRDi | 1995 | 110 | 150 | 2012.09 - |
| HYUNDAI | SANTA FÉ III (DM, DMA) | D4HA | 2.0 CRDi 4WD | 1995 | 110 | 150 | 2012.09 - |
| HYUNDAI | SANTA FÉ III (DM, DMA) | D4HB | 2.2 CRDi 4AWD | 2199 | 145 | 197 | 2012.09 - 2015.12 |
| HYUNDAI | SANTA FÉ III (DM, DMA) | D4HB | 2.2 CRDi | 2199 | 145 | 197 | 2012.09 - 2015.12 |
| KIA | CARNIVAL / GRAND CARNIVAL III (VQ) | D4HB | 2.2 CRDi | 2199 | 143 | 194 | 2010.01 - |
| KIA | CARNIVAL / GRAND CARNIVAL III (VQ) | D4HB | 2.2 CRDi | 2199 | 110 | 150 | 2010.01 - |
| KIA | SORENTO II (XM) | D4HA | 2.0 CRDi 4WD | 1995 | 110 | 150 | 2010.11 - |
| KIA | SORENTO II (XM) | D4HA | 2.0 CRDi | 1995 | 110 | 150 | 2010.11 - |
| KIA | SORENTO II (XM) | D4HB | 2.2 CRDi 4AWD | 2199 | 145 | 197 | 2009.11 - |
| KIA | SORENTO II (XM) | D4HB | 2.2 CRDi | 2199 | 145 | 197 | 2009.11 - |
| KIA | SPORTAGE III (SL) | D4HA | 2.0 CRDi AWD | 1995 | 100 | 136 | 2010.07 - |
| KIA | SPORTAGE III (SL) | D4HA | 2.0 CRDi | 1995 | 100 | 136 | 2010.07 - |
