04226-26010
Henshine
0610
New, Genuine Quality
04226-26010
04226-26010，0422626010，DCRS300980
HXH
12 Months
Iron and plastic
7-15 days
Gray and Silver
NEW/ Original Quality
TOYOTA AURIS/ AVENSIS/ COROLLA/ RAV4/ VERSO
TOYOTA 04226-2*040,294200-0*11
Compact SCV
N/A
Netural, Henshine & OEM
Cutaway of TOYOTA RAV4 Injection Pump 294000-2621 including SCV control valve 04226-26010
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
04226-26010 Suction Control Valve for Fuel Supply System Injection Pump used on ISUZU Made by Ningbo Henshine Precision Machinery
The Suction Control Valve 04226-26010 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure
that the vehicle can run normally but also enable the engine to run in the most fuel -- efficient state to achieve the effect of saving fuel.
2008-11-06
Figure 1 Exploded Diagram of 04226-26010 on Toyota RAV4 Injection Pump 22100-0R050
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
SUCTION CONTROL VALVE
04226-26010 SCV Control Valve DCRS300980 TOYOTA RAV4 22100-0R051 Engine 2AD-FHV
+Diesel Common Rail System/Fuel Supply System
-Components of Fuel Injection Pump/ Supply Pump
-SCV Valve/Fuel Pressure Regulating Valve; Suction Control Valve
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:

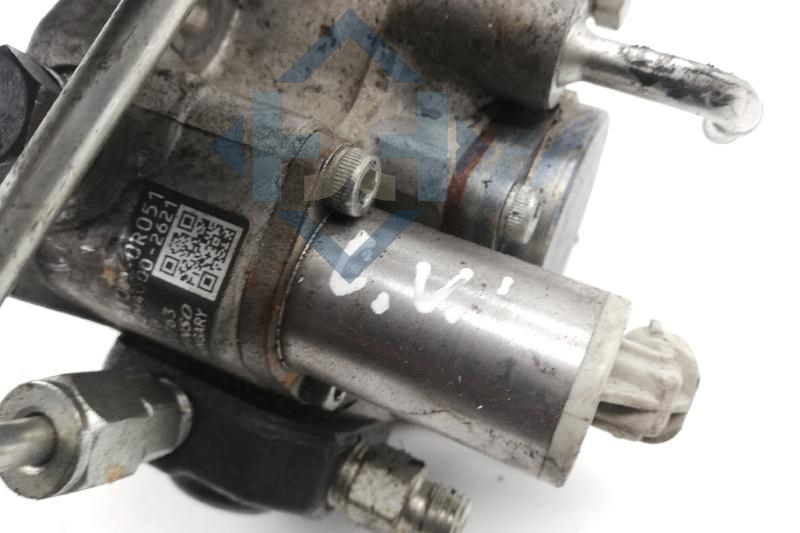

FIGURE 2 Side View of TOYOTA RAV4 2AD-FHV Suction Control Valve SCV 04226-26010
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 3 TOYOTA COROLLA SCV Control Valve DCRS300980 Fitting on 22100-0R050
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

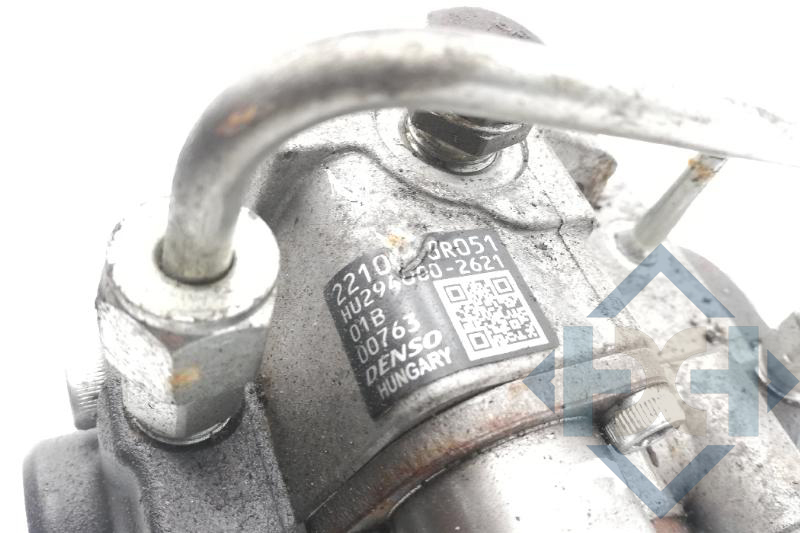

FIGURE 3 26010 TOYOTA RAV SCV Valve 22100-0R051 Fitting on 294000-2621
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Make: | TOYOTA |
| Model: | AURIS/ AVENSIS/ COROLLA/ RAV4/ VERSO |
| Submodel: | / |
| Year: | |
| Engine Type: | / |
| Engine Family: | 2AD-FTV |
| Engine Size: | / |
| Fuel Type: | Diesel |
| Regulator Usage: | Supply Pump |
| Replaces OEM Part Number (application): | Instead of Toyota 04226-26010 |
Condition: Brand NEW
Manufacturer Part Number: 04226-26010
Other Numbers: TOYOTA 0422626010
Brand: HENSHINE
Material: Plastic, Iron
Delivery time: 1-3days
Colour: Silver & Gray
Surface Finish: High Quality
Placement on Vehicle: TOYOTA VERSO (09-18
LEXUS IS II (05-13
TOYOTA AURIS (E15) (06-12
TOYOTA AVENSIS (03-09
TOYOTA COROLLA Verso (E12) (01-09
TOYOTA RAV 4 III (05-13
TOYOTA RAV 4 IV (12-
Pump: 294000-1020, 294000-1021, 294000-2620 & etc
Original Number: OE 04226-26010,0422626010,DCRS300980
Type: Suction Control Valve/ SCV
Packing: No 3/4 Natural Box & Henshine Box
Warranty: 1 year
Min Order: 10 pcs
Production Capacity: 5800 pcs per month
Means of Transport: Ocean, Land, Air, Express
Payments: Visa, Mastercard, T/T, Online Transfer, Cash on pickup
A fuel pressure regulator, also named a suction control valve, or SCV valve, helps maintain the fuel
pressure in the Fuel Injection System. If the fuel injection system needs more fuel pressure, the fuel
pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like 04226-26010 Diesel Metering Valve.
What Is a SCV? >> check here
The suction control valve (SCV) controls the fuel pressure in the common rail diesel engine. The use tolerance of SCVs is very small and will soon be affected by contaminated fuel and / or fouling.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
SCV MPROP 04226-26010 FOR TOYOTA/ LEXUS
Interchangeable OE Numbers: 04**6-2**40，04**6-2**30
Other Names for SCV:
Suction Control Valve
FCA
Injection Pressure Regulator
Fuel Pressure Regulator
Fuel Control Actuator
Fuel Pump Pressure Regulator
OVERHAUL KIT
Measuring Unit
scv control valve
Fuel Pump Valve
Fuel Measurement Solenoid Valve
VALVE ASSY SUCTION
Compatible Vehicles for 04226-26010:
| TOYOTA | AVENSIS (_T25_) | 1AD-FTV | 2.0 D-4D (ADT250_) | 1998 | 93 | 126 | 2006.03 - 2008.11 | Informacje o TOYOTA AVENSIS (_T25_) 2.0 D-4D (ADT250_) 2006.03 - 2008.11 |
| TOYOTA | AVENSIS Kombi (_T25_) | 1AD-FTV | 2.0 D-4D (ADT250_) | 1998 | 93 | 126 | 2006.03 - 2008.11 | Informacje o TOYOTA AVENSIS Kombi (_T25_) 2.0 D-4D (ADT250_) 2006.03 - 2008.11 |
| TOYOTA | AVENSIS sedan (_T25_) | 1AD-FTV | 2.0 D-4D (ADT250_) | 1998 | 93 | 126 | 2006.03 - 2008.10 | Informacje o TOYOTA AVENSIS sedan (_T25_) 2.0 D-4D (ADT250_) 2006.03 - 2008.10 |
| TOYOTA | RAV 4 III (_A3_) | 2AD-FTV | 2.2 D 4WD (ALA30_) | 2231 | 100 | 136 | 2006.02 - 2012.12 | Informacje o TOYOTA RAV 4 III (_A3_) 2.2 D 4WD (ALA30_) 2006.02 - 2012.12 |
| TOYOTA | RAV 4 III (_A3_) | 2AD-FHV | 2.2 D 4WD (ALA30_) | 2231 | 130 | 177 | 2006.02 - 2013.06 | Informacje o TOYOTA RAV 4 III (_A3_) 2.2 D 4WD (ALA30_) 2006.02 - 2013.06 |
| TOYOTA | RAV 4 III (_A3_) | 2AD-FHV, 2AD-FTV | 2.2 D (ALA35_) | 2231 | 110 | 150 | 2008.12 - 2013.06 | Informacje o TOYOTA RAV 4 III (_A3_) 2.2 D (ALA35_) 2008.12 - 2013.06 |
| TOYOTA | RAV 4 III (_A3_) | 2AD-FHV, 2AD-FTV | 2.2 D 4WD (ALA30_) | 2231 | 110 | 150 | 2008.12 - 2013.06 | Informacje o TOYOTA RAV 4 III (_A3_) 2.2 D 4WD (ALA30_) 2008.12 - 2013.06 |
| TOYOTA | RAV 4 IV (_A4_) | 1AD-FTV | 2.0 D (ALA40_) | 1998 | 91 | 124 | 2012.12 - 2018.11 | Informacje o TOYOTA RAV 4 IV (_A4_) 2.0 D (ALA40_) 2012.12 - 2018.11 |
| TOYOTA | RAV 4 IV (_A4_) | 1AD-FTV | 2.0 D 4WD (ALA41_) | 1998 | 91 | 124 | 2013.01 - 2018.11 | Informacje o TOYOTA RAV 4 IV (_A4_) 2.0 D 4WD (ALA41_) 2013.01 - 2018.11 |
| TOYOTA | RAV 4 IV (_A4_) | 2AD-FHV, 2AD-FTV | 2.2 D 4WD (ALA49) | 2231 | 110 | 150 | 2012.12 - | Informacje o TOYOTA RAV 4 IV (_A4_) 2.2 D 4WD (ALA49) 2012.12 - |
