2024377 Fuel Metering Valve for Fuel System of SCANIA 2059882 TNVD XPI D13 High Pressure Pump| Henshine Precision Mach.

OE: 2024377
Manufacturer: SCANIA
Name: Fuel Metering Valve, Fuel Pressure Regulating Valve, Fuel Dosing Unit
Interchangeable OE Numbers: 28***50, 54**059 ... & etc.
Location: Fuel Supply Pump/ High-Pressure Pump
Pump Reference OE: 2059882/ 2189635/ 4955053/ 2062646/ 5613401/ 5005052/ 1947370/ 1947377/ 1947370/ 2872669/ 2094118/ 2007109/ 561301/ 5005809
Quality: Original Quality
  • 2024377 Henshine
  • Henshine
  • 8481803990
  • NEW IMV
  • SCANIA 2024377
  • 54**056, 287**50
  • Usage for Scania
  • 12 Months
  • Plastic, Iron
  • 1-3 days
  • Black and Gray
  • High Quality
  • SCANIA
  • 176**11
  • FUEL METERING VALVE/Fuel Pressure Regulating Valve
  • N/A
  • Netural, Henshine & OEM

Fuel Metering Valve

2024377 Fuel Metering Valve for Fuel System of SCANIA 2059882 TNVD XPI D13 High Pressure Pump| Henshine Precision Mach.


+Diesel Common Rail System/Fuel System


  -Components of High-pressure Pump/Fuel Supply Pump


   -IMV Valve/Fuel Pressure Regulating Valve; Fuel Metering Valve


Ningbo Henshine Precision Machinery Co., Ltd


Detailed Photo:

FIGURE-1-Side_View-of-SCANIA_Fuel_Metering_Valve-2024377

FIGURE 1: Side View of SCANIA Fuel Metering Valve 2024377

(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)


FIGURE-2-Neutral_Package-SCANIA_Valve_2024377-Fitting_on_2059882

FIGURE 2: Neutral Package SCANIA Valve 2024377 Fitting on 2059882
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)


FIGURE-2-Neutral_Package-SCANIA_Valve_2024377-Fitting_on_2059882

FIGURE 3    : Neutral Package SCANIA Valve 2024377 Fitting on 2059882
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

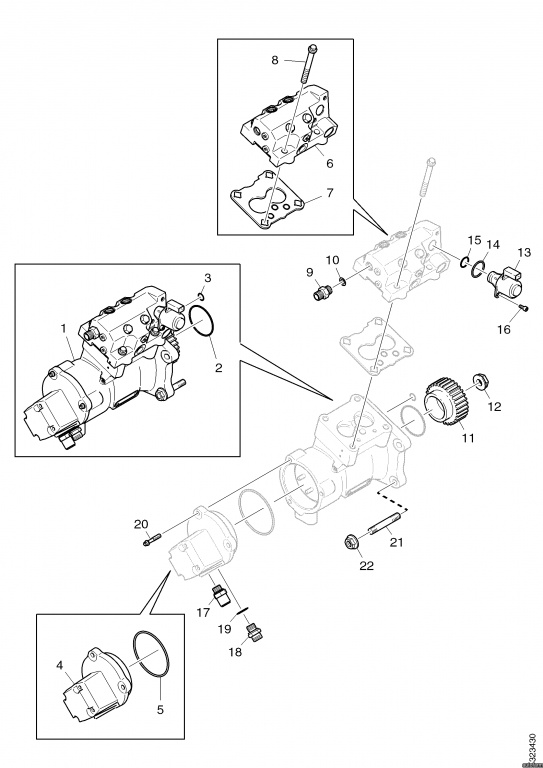

Cutaway-of-Scania-High-pressure_Pump-2059882-contains-the_Donsing_Unit

FIGURE 4: Cutaway of Scania High-pressure Pump 2059882 contains the Donsing Unit 2024377
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)


FUEL DOSING VALVE FUEL PUMP XPI (D13) Reference 2024377
No. OE Name
1 2059882 High pressure pump

571091 High-pressure pump
2 323790 O-ring ø 114.5x3x120.5
3 1891558 O-ring ø 10.2x3.5x17.2

2059884 Fuel pump
4
Fuel pump nss
5
1749981 Seal

2065542 Fuel pump head kit
6
NSS fuel pump head
7 1785726 Cushion
8 1873406 Tighten

1873409 Accessory kit
9
Nss fitting
10
1895493 Seal
11 1788433 Gear
12 1874645 Flange nut
13 2024377 Fuel metering valve

1874000 O-ring kit
14
O-ring nsp
15
O-ring nsp
16 809773 Screw M5x16
17 2223436 Connector ø 12x1.5 M16x1.5
18 813198 Straight ø 12 M16x1.5x31.5
19 2279229 Washer ø 16 mm, green
20 812519 Washer ø 16 mm, green

2273400 Flange bolt M8x30
21
Repair kit
22
Plunger sleeve nss
23
O-ring nss
24
Spring nss
25
Spring seat nss
26 2229958 hairpin
27 815615 Self-locking nut M10

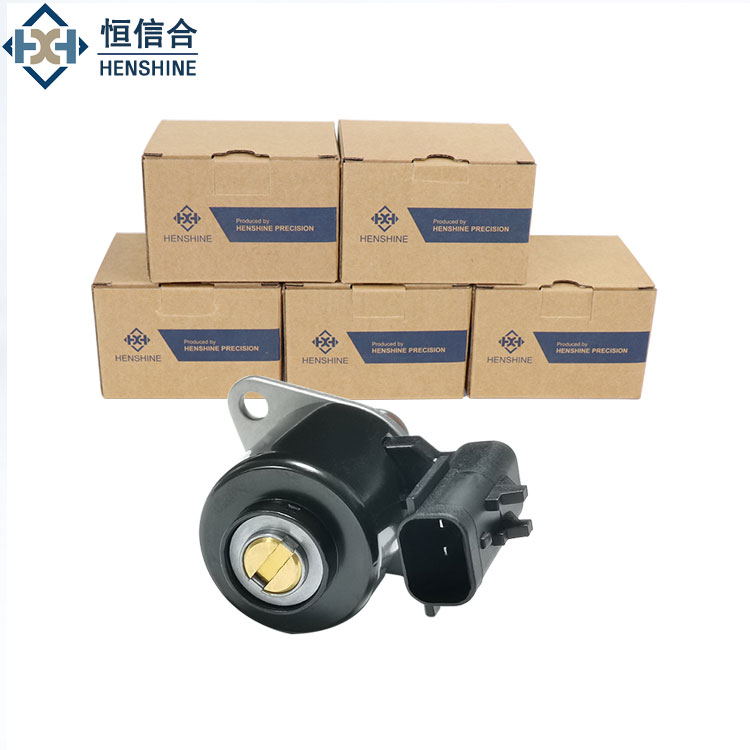

2024377-Fuel_Metering_Valve-for-Fuel_Supply_Pump-used-on-SCANIA-CUMMINS-BENZ_Tractors-Made-by-Henshine


2024377 Fuel Metering Valve for Fuel Supply Pump used on SCANIA/CUMMINS/BENZ Tractors Made by Henshine


The Fuel Metering Valve 2024377 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure that the vehicle can run normally but also enable the engine to run in the most fuel-efficient state to achieve the effect of saving fuel.

2021-09-14


OEM suction control valve

                Package & Shipment:

                Condition:                                 Brand NEW

                Manufacturer Part Number:   2024377

                Other Numbers:                       176**11 & etc.

                Brand:                                       HENSHINE

                Material:                                   plastic, iron

                Delivery time:                           1-3days

                Colour:                                      Silver & Black

                Surface Finish:                          High Quality

                Placement on Vehicle:             SCANIA/BENZ/CUMMINS Tractor

                Pump:                                        2059882/ 2189635/ 4955053/ 2062646/ 5613401/ 5005052

                Original Number:                     27**50

                Replaced                                   176**11

                Type:                                         Fuel Pressure Regulator/ IMV

                Packing:                                    No 3/4 Natural Box & Henshine Box

                Warranty:                                  1 year

                Min Order:                                1pc

                Production Capacity:               64200 pcs per month

                Means of Transport:                Ocean, Land, Air,express

                Payments:                                 Visa, Mastercard, T/T, Online Transfer, Cash on pickup


                A fuel pressure regulator, also named a suction control valve, or IMV valve, helps maintain the fuel

                pressure in the Fuel Injection System. If the fuel injection system needs more fuel pressure, the fuel

                pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets                   to the injectors.  Blocking the pass-through to the fuel tank off completely, the fuel pump will try to                          force too much fuel into the injectors which will cause them to fail and you will end up needing another                  auto repair service.


                As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.

                A good factory, a good supplier with stable quality and follows IATF16949 rules strictly.



               After being tested by many of our customers in Europe and the Americas, this pressure regulator is                           a good replacement for OE diesel parts, like 2024377 Diesel Metering Valve.
