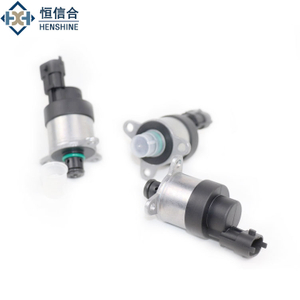

diesel Common rail system Fuel Pump Pressure Regulator Valve 0928400487 fuel metering valve 1465ZS0041

0928400487
Fuel metering valve can be used on fuel pumps to controls the amount of fuel entering the pump.
The fuel metering valve regulates the fuel quantity which is fed to the high-pressure chambers of the high-pressure pump depending on the fuel pressure in the fuel rail.
Availability:
Inquire

  • 0928400487

  • Henshine

Manufacturer Part Number Diesel
Other Part Number 0928400487
Colour Black and Silver
Surface Finish NEW/ Original Quality
Placement on Vehicle Engine
Type Diesel
packing Netural, Henshine & OEM



8



0928400487

OE number：0 928 400 487 ,0928400487 ,

PUMP：

0 445 010 031, 0 445 010 033,

Fuel metering valve can be used on fuel pumps to controls the amount of fuel entering the pump.

The fuel metering valve regulates the fuel quantity which is fed to the high-pressure chambers of the high-pressure pump depending on the fuel pressure in the fuel rail.





The Fuel Inlet Metering Valve (IMV) controls the fuel flow in the common rail of the diesel engine. The use tolerance of IMV is very small and will soon be affected by contaminated fuel and / or fouling.


When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.


An ECU operated Inlet metering valve (IMV),which is located on the side of the high-pressure fuel pump is utilised for this purpose. which controls the output volume and pressure in the fuel rail.


Generally, the IMV is available as a replacement unit for a range of Fuel Supply Pump.

The Fuel Supply Pump only compresses the amount of fuel needed to maintain the fuel pump pressure required.


This assists in reducing emissions by reducing engine operating load.

Reducing fuel flow during operation also results in lower fuel temperatures.


Common typical faults affecting IMV operation.

Excess wear, contaminated fuel, or an electrical malfunction with the Fuel Inlet Metering Valve, can be created major driveability problems and possible fuel pressure conditions.


GMC-0928400496-Components-of-Common-Rail-System-0445020017-Fuel-Metering-Vavle-5

Normally, There are two types fuel metering valve. The most obvious difference is the plug of the valve which connecting the wires, “Bent head” and “Straight head”. If the plug is “Straight head”, it is always OPEN, and used for Engineering machinery vehicles, like trucks etc, with 6 cylinders. If the plug is “Bent head”, it is always CLOSED, and used for small car with 4 cylinders.


GMC-0928400496-Components-of-Common-Rail-System-0445020017-Fuel-Metering-Vavle-4

Ningbo HENSHINE Precision Machinery Co., Ltd. was established in 2012.HENSHINE is a global supplier of automotive parts. It mainly develop, manufacture and sale of solenoid valves for diesel high-pressure common rail system, automotive refrigeration system, industrial solenoid valves and other precision spare parts. The main items are: SCV fuel control valve and high pressure common rail control valve DRV  Pressure control valve.


1742884762273


HENSHINE PRECISION  sincerely welcome friends to visit,we go hand in hand,create brilliant!



As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.

A good factory, a good supplier with stable quality, and follows IATF16949 rules strictly.


After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts


封面

海报方案新

We have the most complete inventory

Welcome to consult

0928400002  0928400003  0928400005  0928400006  0928400008  0928400009

0928400010  0928400011  0928400415  0928400473  0928400481  0928400484

0928400487  0928400492  0928400493  0928400496  0928400498  0928400505

0928400508  0928400512  0928400534  0928400535  0928400543  0928400547

0928400559  0928400560  0928400561  0928400562  0928400563  0928400567

0928400568  0928400572  0928400574  0928400575  0928400584  0928400588

0928400600  0928400604  0928400606  0928400607  0928400608  0928400612

0928400614  0928400616  0928400617  0928400619  0928400620  0928400624

0928400626  0928400627  0928400629 0928400631  0928400632  0928400633

0928400634  0928400635  0928400636  0928400637  0928400638  0928400640

0928400641  0928400642  0928400643  0928400644  0928400646  0928400648

0928400651  0928400652  0928400653  0928400655  0928400656  0928400658

0928400659  0928400660  0928400664  0928400665  0928400666  0928400668

0928400669  0928400670  0928400671  0928400672  0928400673  0928400675

0928400676  0928400677  0928400679  0928400680  0928400681  0928400682

0928400683  0928400684  0928400689  0928400690  0928400691  0928400692

0928400694  0928400698  0928400699  0928400700  0928400702  0928400703

0928400704  0928400705  0928400706  0928400707  0928400708  0928400711

0928400712  0928400713  0928400714  0928400715  0928400716  0928400718

0928400721  0928400724  0928400725  0928400726  0928400728  0928400733

0928400736  0928400737  0928400738  0928400739  0928400741  0928400742

0928400743  0928400744  0928400745  0928400746  0928400748  0928400749

0928400750  0928400752  0928400756  0928400757  0928400758  0928400760

0928400761  0928400762  0928400764  0928400765  0928400768  0928400769

0928400770  0928400771  0928400772  0928400774  0928400775  0928400776

0928400779  0928400781  0928400782  0928400783  0928400784  0928400788

0928400789  0928400794  0928400796  0928400797  0928400799  0928400800

0928400801  0928400802  0928400803  0928400804  0928400807  0928400812

0928400813  0928400815  0928400818  0928400820  0928400821  0928400822

0928400823  0928400825  0928400826  0928400827  0928400828  0928400829

0928400830  0928400831  0928400834  0928400835  0928400836  0928400838

0928400840  0928400848  0928400878
