A 651 074 00 84, Fuel Injection Pump, Fuel Supply system Hyundai, 28508414
Figure 1 Cutaway of Mercede-Bens Fuel Pump A6510701801 contains the IMV valve A6510740084
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

Number	Cnt	Name	Usage	Remarks
5	A6510701801	1	HIGH-PRESSURE PUMP	"F117: SERIES PRODUCTION 117"
	Replaced By: A6510702601			Or "F156: SERIES PRODUCTION 156"
				Or "F176: MODEL SERIES 176"
				Or "F246: SERIES PRODUCTION 246"
				Or "F091: PROJECT PASCALE"
5	A6510702601	1	HIGH-PRESSURE PUMP	"F117: SERIES PRODUCTION 117"
				Or "F156: SERIES PRODUCTION 156"
				Or "F176: MODEL SERIES 176"
				Or "F246: SERIES PRODUCTION 246"
				Or "F091: PROJECT PASCALE"
10	A0009050800	1	TEMPERATURE SENSOR	To Ident No: 30401961
				To: 20.10.2010
10	A0051538328	1	TEMPERATURE SENSOR	To Ident No: 30401961
	Replaced By: A0009050800			To: 20.10.2010
30	A0129970745	1	SEALING RING	To Ident No: 30401961
				To: 20.10.2010
40	A6510740084	1	FLOW CONTROL VALVE	To Ident No: 30401961
				To: 20.10.2010
110	N910143008004	3	HEXALOBULAR BOLT	To Ident No: 30401961	M8X35
			HIGH-PRESSURE PUMP TO CRANKCASE	To: 20.10.2010
120	A6510770412	1	DRIVE GEAR	To Ident No: 30401961
				To: 20.10.2010
120	A6510770512	1	DRIVE GEAR	To Ident No: 30401961
				To: 20.10.2010
125	A6519810006	1	ANGULAR CONTACT BALL BRG.	To Ident No: 30401961
				To: 20.10.2010
130	N000471060000	1	RETAINING RING
140	A0009904710	1	SCREW		M7X20.3
			DRIVE GEAR TO CRANKCASE
150	A6510770115	1	COUPLING FLANGE
160	N910112014000	1	HEXAGON NUT
			COUPLING FLANGE TO HIGH-PRESSURE PUMP
170	A6510770109	1	CONNECTING DRUM
180	A0009828909	1	PROTECTIVE CAP
			FOR REPAIR TO CDI COMPONENTS
180	A6460720004	1	TS CLOSING COVER
	Replaced By: A0009828909		PARTS KIT
900	A0225452026	1	CLUTCH HOUSING	To Ident No: 30401961	2-PIN MLK1.2
			TEMPERATURE SENSOR	To: 20.10.2010
901	A0009823026	NB	CRIMP RECEPTACLE CONTACT	To Ident No: 30401961	0.75-1.0 MM2 MLK1.2S
				To: 20.10.2010
901	A0015455080	NB	SINGLE-WIRE SEAL	To Ident No: 30401961	0.22-1.0 MM2
				To: 20.10.2010
902	A0525453826	1	PLUG HOUSING	To Ident No: 30401961	2-PIN SLK2.8;M41/3
			HIGH-PRESSURE PUMP	To: 20.10.2010
903	A0005457680	NB	GASKET	To Ident No: 30401961	2.2-3.0 MM
				To: 20.10.2010
903	A0095458226	NB	FEMALE CONTACT	To Ident No: 30401961	1.5-2.5 MM2 SLK2.8
				To: 20.10.2010



28508414 Fuel Metering Valve for Fuel Supply Pump used on Humber/GMC/Chevrolet Made by Henshine

The Fuel Inlet Metering Valve 28508414 is generally installed at the inlet of the Fuel Injection Pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure that the vehicle can run normally but also enable the engine to run in the most fuel-efficient state to achieve the effect of saving fuel.

2022-10-16

Fuel Metering Valve

28508414 Fuel Metering valve Mercedes-Benz A6510702601 9422A040A fuel supply Pump

+Diesel Common Rail System/Fuel System

  -Components of High-pressure Pump/Fuel Supply Pump

   -IMV Valve/Fuel Pressure Regulating Valve; Inlet Metering Valve

Ningbo Henshine Precision Machinery Co., Ltd

Detailed Photo:

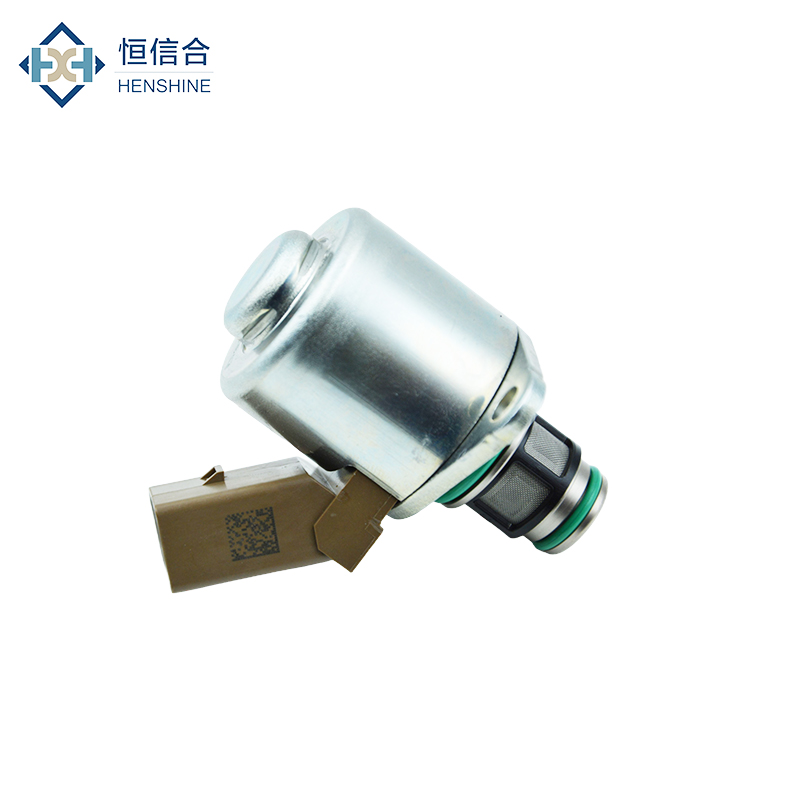

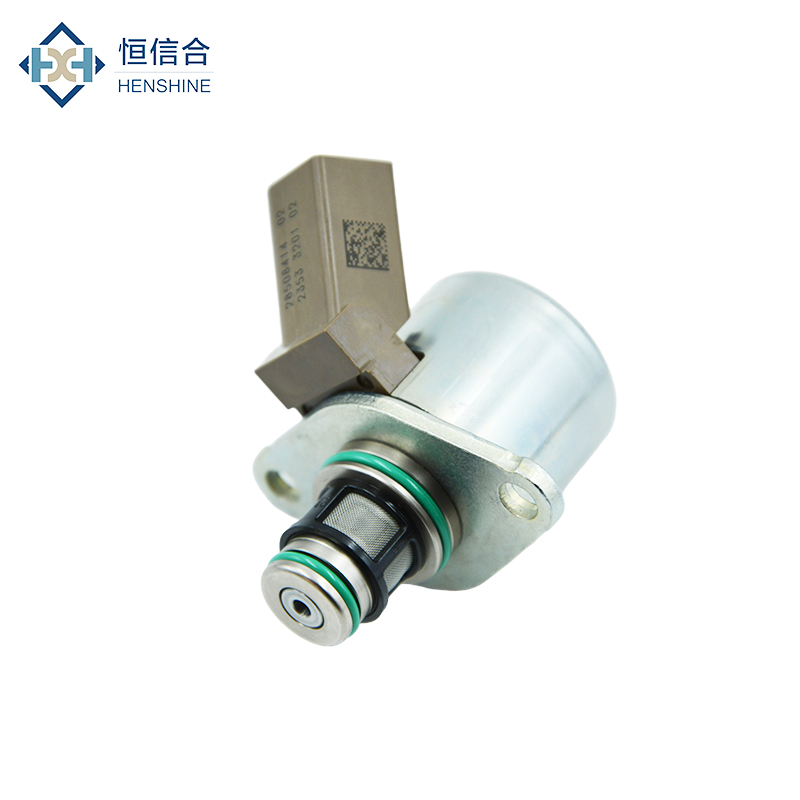

FIGURE 1 Side View of Hyundai Metering Valve 28508414

(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

Figure 3 Denso Overhaul Kit Valve 28508414 Fitting on 28277574 | Henshine Precision Machinery
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

                Condition:                                 Brand NEW

                Manufacturer Part Number:    28508414

                Other Numbers:                       16756-HG00B

                Brand:                                       HENSHINE

                Material:                                    plastic, iron

                Delivery time:                           5-12days

                Colour:                                      Silver & Brown

                Surface Finish:                         High Quality

                Placement on Vehicle:             Mercede-Bens/Volkswagen/ ALIDI

                Type:                                          Fuel Pressure Regulator/ IMV

                Packing:                                    ODM/Customized/No 3/4 Natural Box & Henshine Box

                Warranty:                                  12 Months

                Min Order:                                 20 pcs

                Production Capacity:               1100 pcs per month

                Means of Transport:                Ocean, Land, Air, Express

                Payments:                                 Visa, Mastercard, T/T, Online Transfer, Cash on pickup

                A fuel pressure regulator also named a suction control valve, or SCV Valve helps maintain the fuel pressure in the Fuel
             Injection System.
                If the fuel injection system needs more fuel pressure, the fuel pressure regulator releases more fuel to go to the engine.
                This is vital because that is how the fuel gets to the injectors.  Blocking the pass-through to the fuel tank off completely,
                the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing
                another auto repair service.

                As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.

                A good factory, a good supplier with stable quality, and follows IATF16949 rules strictly.

               After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement
               for OE diesel parts, like 28508414 Diesel Metering Valve.
