97728979
Henshine
252
Brand New
97728979
F00E200433
HXH
12 Months
Iron and plastic
12-15 days
Black and Silver
NEW/ High Quality
GMC
09284005*5
FUEL INLET METERING VALVE
N/A
Netural, Henshine & OEM
FIGURE 1 Cutaway of GMC High-pressure Pump 0445020005 contains the Metering Unit 97728979
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| REPLACING PARTS: | ||||
| ORDER NUMBER | DESIGNATION | CODE | POSITION | QUANTITY |
| F 00N 200 657 | SCREW PLUG | F00N200657 | 16 | 2 |
| F 00R 0P0 582 | TAPPET | F00R0P0582 | 20 | 3 |
| F 00N 200 141 | COMPRESSION SPRING | F00N200141 | 21 | 3 |
| F 00R 0P0 340 | O-RING | F00R0P0340 | 30 | 3 |
| F 00R 0P0 340 | O-RING | F00R0P0340 | 31 | 1 |
| F 00R 0P0 340 | O-RING | F00R0P0340 | 32 | 1 |
| F 00R 0P0 341 | O-RING | F00R0P0341 | 35 | 1 |
| F 00R 0P1 209 | FLANGE | F00R0P1209 | 100 | 1 |
| F 00R 0P0 351 | CHEESE HEAD SCREW | F00R0P0351 | 110 | 6 |
| F 00R 0P0 352 | O-RING | F00R0P0352 | 120 | 1 |
| F 00R 0P0 676 | ECCENTRIC SHAFT | F00R0P0676 | 205 | 1 |
| F 00N 200 845 | BUSHING | F00N200845 | 210 | 1 |
| SELECTION GROUP THRUST RING | 212 | 1 | ||
| F 00R 0P0 689 | THRUST RING, 1,95 MM | F00R0P0689 | 213 | 1 |
| F 00R 0P0 690 | THRUST RING | F00R0P0690 | 214 | 1 |
| F 00N 200 798 | OVERFLOW VALVE | F00N200798 | 300 | 1 |
| 2 912 712 162 | CHEESE HEAD SCREW | 2912712162 | 321 | 3 |
| F 00N 200 500 | VALVE BOLT | F00N200500 | 350 | 3 |
| 1 903 230 009 | BALL, DIN 5401 - 5 G28 | 1903230009 | 352 | 3 |
| F 00N 200 700 | COMPRESSION SPRING | F00N200700 | 353 | 3 |
| F 00N 200 783 | FITTING | F00N200783 | 360 | 1 |
| F 00R 0P1 628 | FITTING | F00R0P1628 | 370 | 1 |
| 2 916 710 607 | FLAT SEAL RING, DIN 7603 - A12x15,5-Cu | 2916710607 | 371 | 1 |
| F 00R 0P1 628 | FITTING | F00R0P1628 | 380 | 1 |
| 2 916 710 607 | FLAT SEAL RING, DIN 7603 - A12x15,5-Cu | 2916710607 | 381 | 1 |
| 0 440 020 012 | GEAR PUMP | 440020012 | 400 | 1 |
| F 00R 0P0 556 | TORX OVAL-HEAD SCREW | F00R0P0556 | 410 | 4 |
| 1 900 508 013 | PROTECTIVE CAP | 1900508013 | 570 | 1 |
| F 00R 0P0 414 | PROTECTION SLEEVE | F00R0P0414 | 571 | 1 |
| F 00N 200 397 | PROTECTIVE CAP | F00N200397 | 572 | 1 |
| 1 900 508 001 | PROTECTIVE CAP | 1900508001 | 572 | 1 |
| 1 900 508 005 | PROTECTIVE CAP | 1900508005 | 573 | 1 |
| 1 900 508 005 | PROTECTIVE CAP | 1900508005 | 574 | 1 |
| F 00N 201 252 | PROTECTION SLEEVE | F00N201252 | 577 | 1 |
| 97728979 | MEASURING UNIT | 97728979 | 800 | 1 |
| F 00N 200 993 | PARTS SET SUCTION VALVE | F00N200993 | 801 | 3 |
97728979 Fuel Metering Valve for Fuel Supply Pump used on Hummber/GMC/Chevrolet Made by Henshine
The Fuel Metering Valve 97728979 is generally installed at the inlet of the high-pressure fuel pump. It is a proportional solenoid valve, controlled by the electronic control unit (ECU), which can control the amount of oil entering the high-pressure fuel pump, thereby controlling the oil pressure in the common rail pipe. The good work of this component can not only ensure that the vehicle can run normally but also enable the engine to run in the most fuel- efficient state to achieve the effect of saving fuel.
2020-09-14
Fuel Metering Valve
GMC 97728979 OE parts of High-pressure Pump 0445020017 Fuel Metering Valve
+Diesel Common Rail System/Fuel System
-Components of High-pressure Pump/Fuel Supply Pump
-IMV Valve/Fuel Pressure Regulating Valve; Fuel Metering Valve
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:

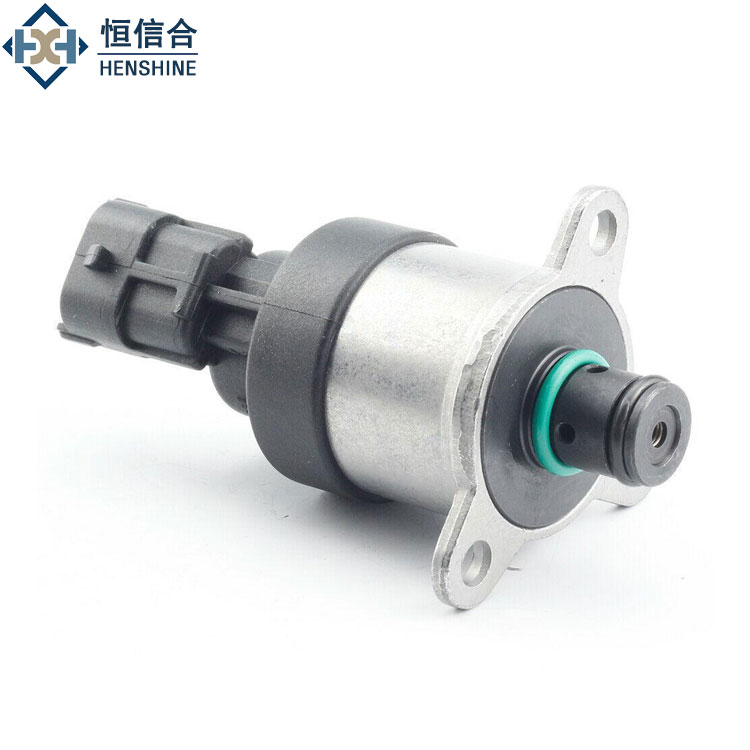

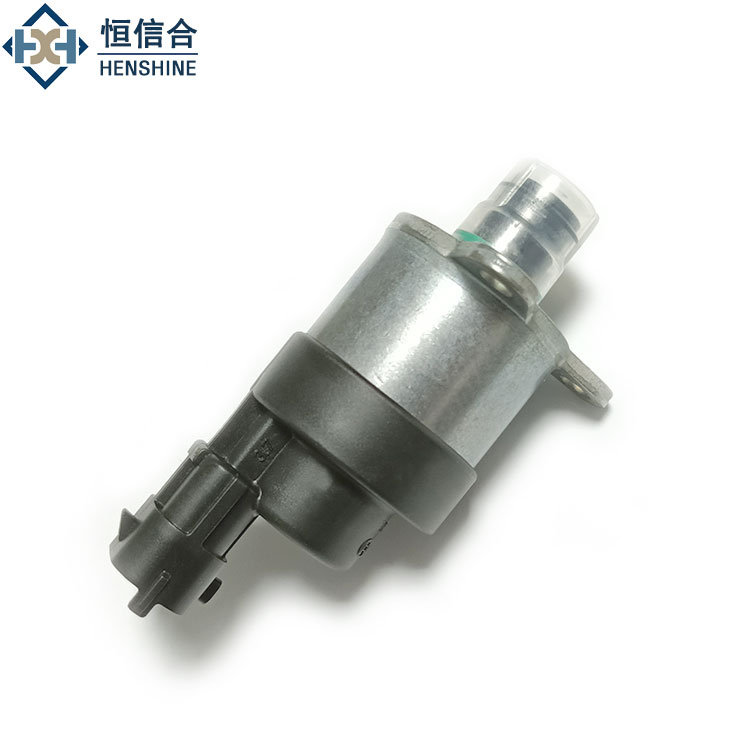

FIGURE 1 Side View of GMC Fuel Metering Valve 97728979
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 3 Neutral Package GMC Control Valve 97728979 Fitting on 0445020005
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
| Make: | CHEVROLET/GMC |
| Model: | SILVERADO 2500 HD/SILVERADO 3500 SIERRA 2500 HD/SIERRA 3500/SLE/SLT |
| Submodel: | BASE/LS/LT/WT/ |
| Beginning Year: | 2001 |
| Ending Year: | 2004 |
| Engine Type: | V8 |
| Engine Family: | Duramax diesel V8 |
| Engine Size: | 6.6L/403 |
| Fuel Type: | Diesel |
| Regulator Usage: | Stock |
| Replaces OEM Part Number (application): | GM 97728979 |
Condition: Brand NEW
Manufacturer Part Number: 97728979
Other Numbers: 0 928 400 5*5/ F00E200433
Brand: HENSHINE
Material: plastic, iron
Delivery time: 1-3days
Colour: Silver & Black
Surface Finish: High Quality
Placement on Vehicle: CHEVROLET/GMC
Original Number: 0928400535
Type: Fuel Pressure Regulator/ IMV
Packing: No 3/4 Natural Box & Henshine Box
Warranty: 1 year
Min Order: 10 pcs
Production Capacity: 8130 pcs per month
Means of Transport: Ocean, Land, Air,express
Payments: Visa, Mastercard, T/T, Online Transfer, Cash on pickup
A fuel pressure regulator, also named a suction control valve, or IMV valve, helps maintain the fuel
pressure in the Fuel Injection System. If the fuel injection system needs more fuel pressure, the fuel
pressure regulator releases more fuel to go to the engine. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like 97728979 Diesel Metering Valve.
