| OE Number: | F00BC80013 | Description: | Fuel Inlet Meter Valve |
| Warranty: | 12 Months | Material: | Iron and plastic |
| Delivery time: | 7-15 days for bulk order/ 1-3 days for sample order | Packing: | Customized/Natural/Henshine |
| Surface Finish: | All NEW/ Genuine Quality | Colour: | Silver & Black |
| Fitted on: | Yanmar marine main enine | Iveco VECTOR 8 | |
Check the video of Inlet Metering Valve F00BC80013 on Youtube
Ningbo Henshine Precision Machinery Co., Ltd
Detailed Photo:

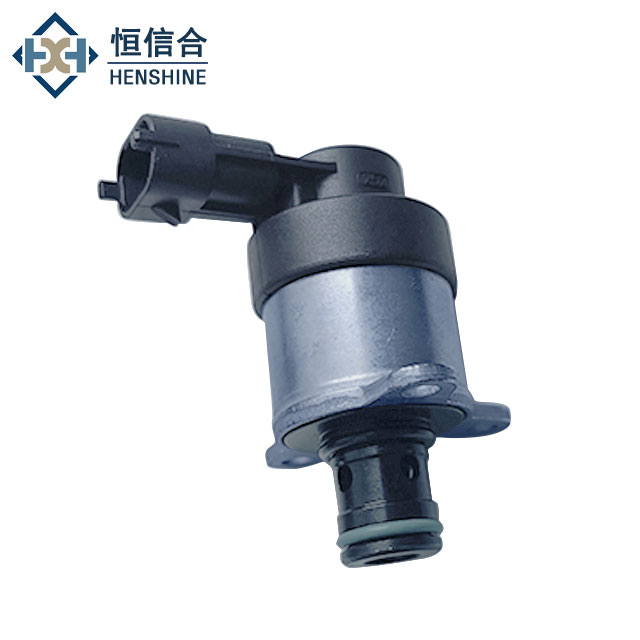

Side View of FUEL FLOW METERING VALVE;FUEL F00BC80013
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

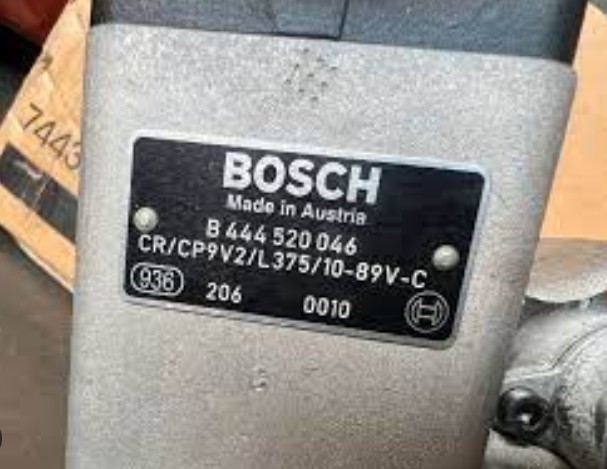

FIGURE 2 Inlet metering Valve F00BC80013 with Fuel Supply Pump B444520046
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
It started slowly and just got bigger and bigger. After starting in the morning, the engine cut out 4-5 times in the first 500 meters.
It felt like the diesel was abruptly cut off or something was stopping the Landy abruptly. Quickly stepping on the clutch only helped sometimes, but generally, the engine just died. There was no warning light on the dashboard to indicate a malfunction and the engine could be restarted again and again without problems.
After research and determined there was a problem with the common rail fuel injection.
Inlet Meteirng Valve Bosch CR Pump, 1 465 ZS0 new OE number list
| Make: | Henshine(Original by Bosch) |
| Model: | Yanmar/IVECO |
| Submodel: | / |
| Engine Type: | / |
| Engine Family: | / |
| Engine Size: | / |
| Fuel Type: | Diesel |
| Regulator Usage: | Fuel Supply Pump Repairing |
| Replaces OEM Part Number (application): | Instead of IVECO 80**94/ CUMMINS 49175**/ YANMAR 148661510** |
Condition: Brand NEW/ Genuine Quality
Manufacturer Part Number: F00BC80013
Other Numbers: /
Manufacturer: Made by HENSHINE
Rail: /
Type: Fuel Inlet Metering Valve/ IMV
Min Sample Order: 15 pcs
Production Capacity: 2,600 pcs/month
Means of Transport: Ocean, Land, Air, Express
Payments: Visa, Mastercard, T/T, WesternUnion, Online Transfer, Cash on pickup
High-pressure Pump B444520046
Fuel Injector Assy --
Fuel Rail Assy --
Rail Perssure Sensor 148661-51060
Pressure Relief Valve 148661-51080
FUEL INLET METERING VALVE
F00B C80 013 Fuel Metering Valve fitted in High Pressure Pump (low pressure side)
+Diesel Common Rail System/Fuel Injection System
-Components of Fuel Supply Pump/ High-pressure Pump
-Dosing Unit/ Fuel Metering Unit/ Metering Valve/ Fuel Flow Control Valve

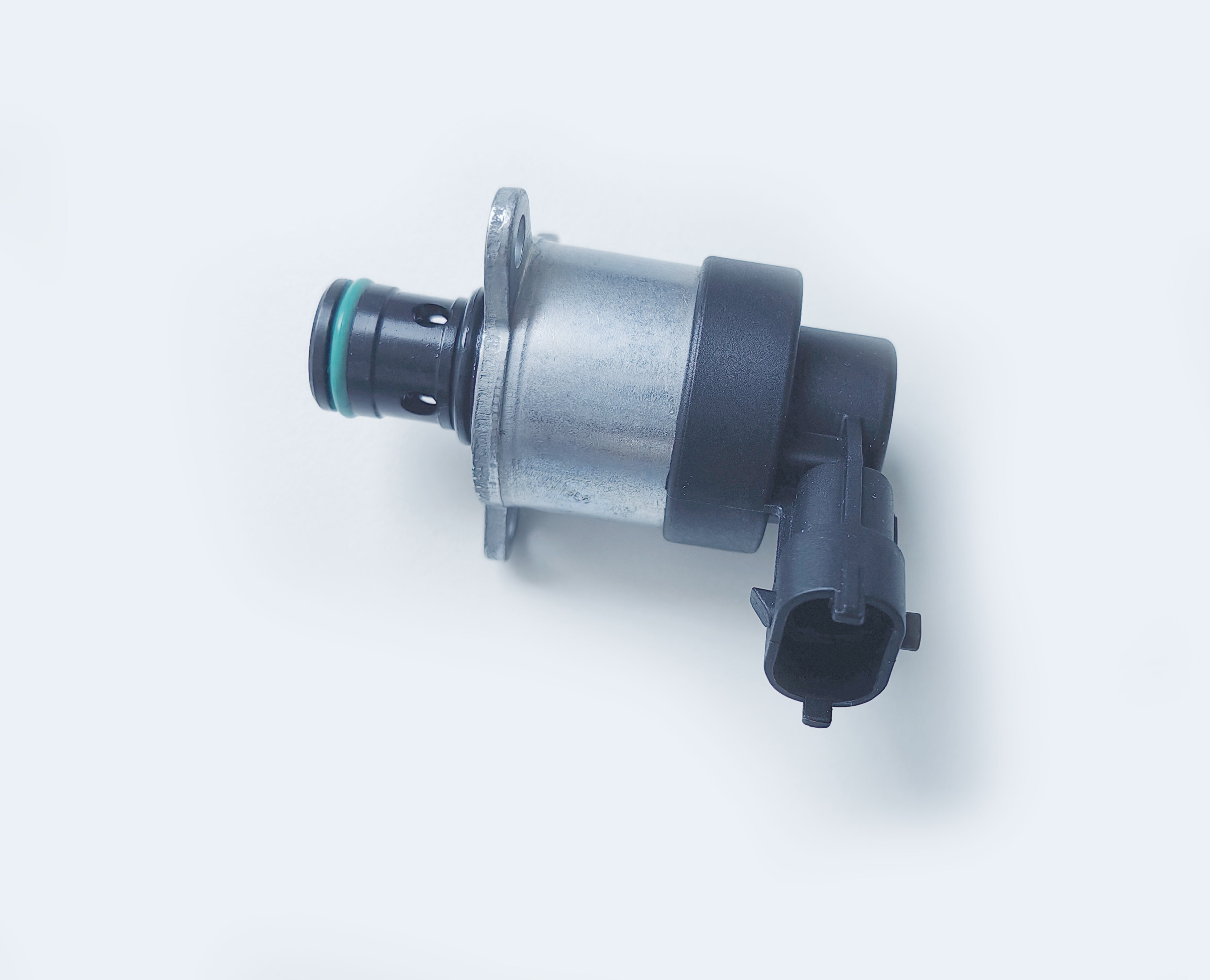

F00BC80013 Inlet Metering Valve for Fuel Supply System used on Diesel Engine in Doosan, Parts Made by Ningbo Henshine Precision Machinery
The Inlet Metering Valve F00BC80013 is generally installed at the fuel supply pump of the fuel injeciton system. It is a fuel-flow-control valve, controlled by the electronic control unit (ECU), which can control the flow of oil entering the high-pressure common rail, thereby controlling the oil flow into the fuel pipe. The good work of this component can not only ensure that the vehicle can run normally but also enable the engine to run in the most fuel -- efficient state to achieve the effect of saving fuel.
2017-03-14
What is a Fuel Inlet Metering Valves? >> check here
The Fuel Inlet Metering Valve (IMV) controls the fuel flow in the common rail of the diesel engine. The use tolerance of IMV is very small and will soon be affected by contaminated fuel and / or fouling.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure. The valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
An ECU operated Inlet metering valve (IMV),which is located on the side of the high-pressure fuel pump is utilised for this purpose. which controls the output volume and pressure in the fuel rail.
Generally, the IMV is available as a replacement unit for a range of Fuel Supply Pump.
The Fuel Supply Pump only compresses the amount of fuel needed to maintain the fuel pump pressure required.
This assists in reducing emissions by reducing engine operating load.
Reducing fuel flow during operation also results in lower fuel temperatures.
Common typical faults affecting IMV operation.
Excess wear, contaminated fuel, or an electrical malfunction with the Fuel Inlet Metering Valve, can be created major driveability problems and possible fuel pressure conditions.
A Inlet valve, also named a Pressure Limiter Valve, or PLV Valve, helps maintain the fuel pressure in the Common Rail System. If the fuel common rail is in over high fuel pressure, the fuel pressure limiter valve releases overmuch pressure from the common rail. This is vital because that is how the fuel gets to the injectors. Blocking the pass-through to the fuel tank off completely, the fuel pump will try to force too much fuel into the injectors which will cause them to fail and you will end up needing another auto repair service.
As you could see, the pressure regulator plays a critical role in the common rail diesel injection system.
A good factory, a good supplier with stable quality, and follows IATF16949 rules strictly.
After being tested by many of our customers in Europe and the Americas, this pressure regulator is a good replacement for OE diesel parts, like F00B C80 013 Diesel Fuel Rail Pressure Limiter Valves.
Ningbo Henshine Precision Machinery Co., Ltd>>>About Us
see in map: Building 25 Zhongxinyungu, No.399 Juchao Road, Fenghua District Ningbo, Zhejiang,China
Jiangshan Town,Ningbo,China
See in Facebook:
Ningbo Henshine Precision Machinery Co., Ltd
See in Linkedin:
Ningbo Henshine Precision Machinery Co., Ltd
See in Tiktok:
See in Twitter:
Ningbo Henshine Precision Machinery Co., Ltd
See in Instgram:
See in Pinterest:
Ningbo Henshine Precision Machinery Co., Ltd
See in Youtube:
Ningbo Henshine Precision Machinery Co., Ltd
the Inlet Meteirng Valves made by Ningbo henshine Precision Machinery
